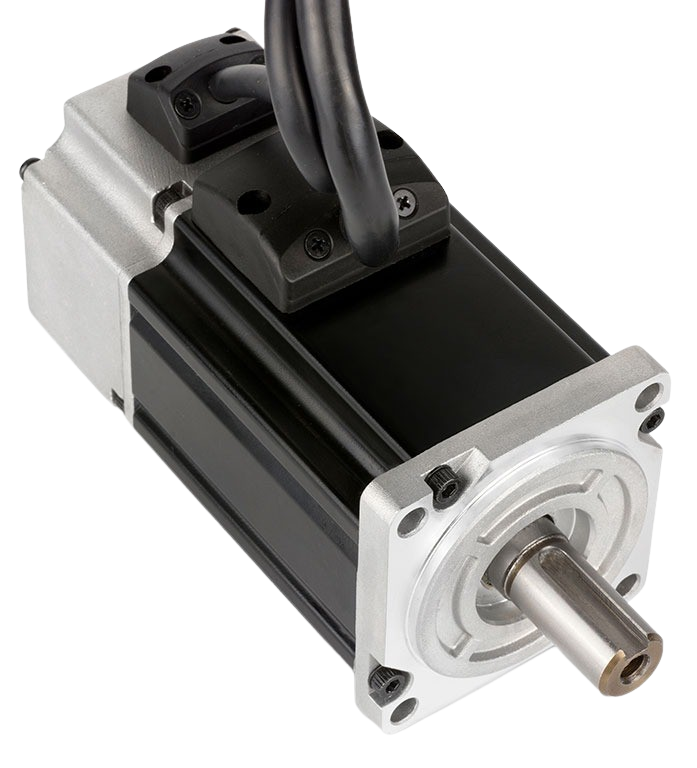

High performance brushless AC servo motor. Standard configuration includes high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271.
| Output Power | 400 W |
|---|---|
| Maximum Speed | 2,500 rpm |
| Rated Torque | 3.8 N*m |
| Motor Frame Size | 60 mm |
| Input Current | 6.9A rms |
| Input Voltage | DC 60 V |
| Shaft Diameter | 14 mm |
| Weight | 3.1 lbs |
