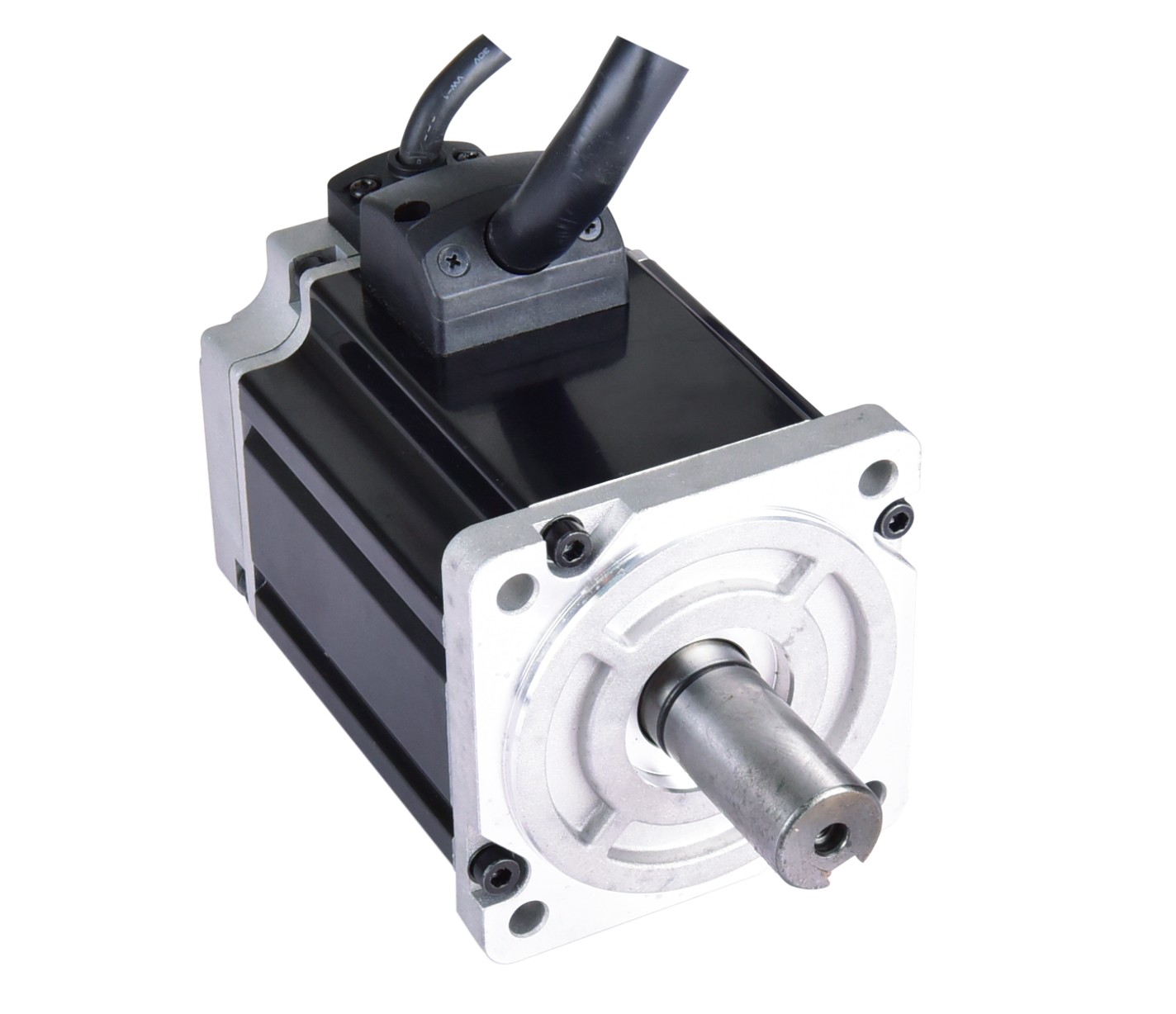

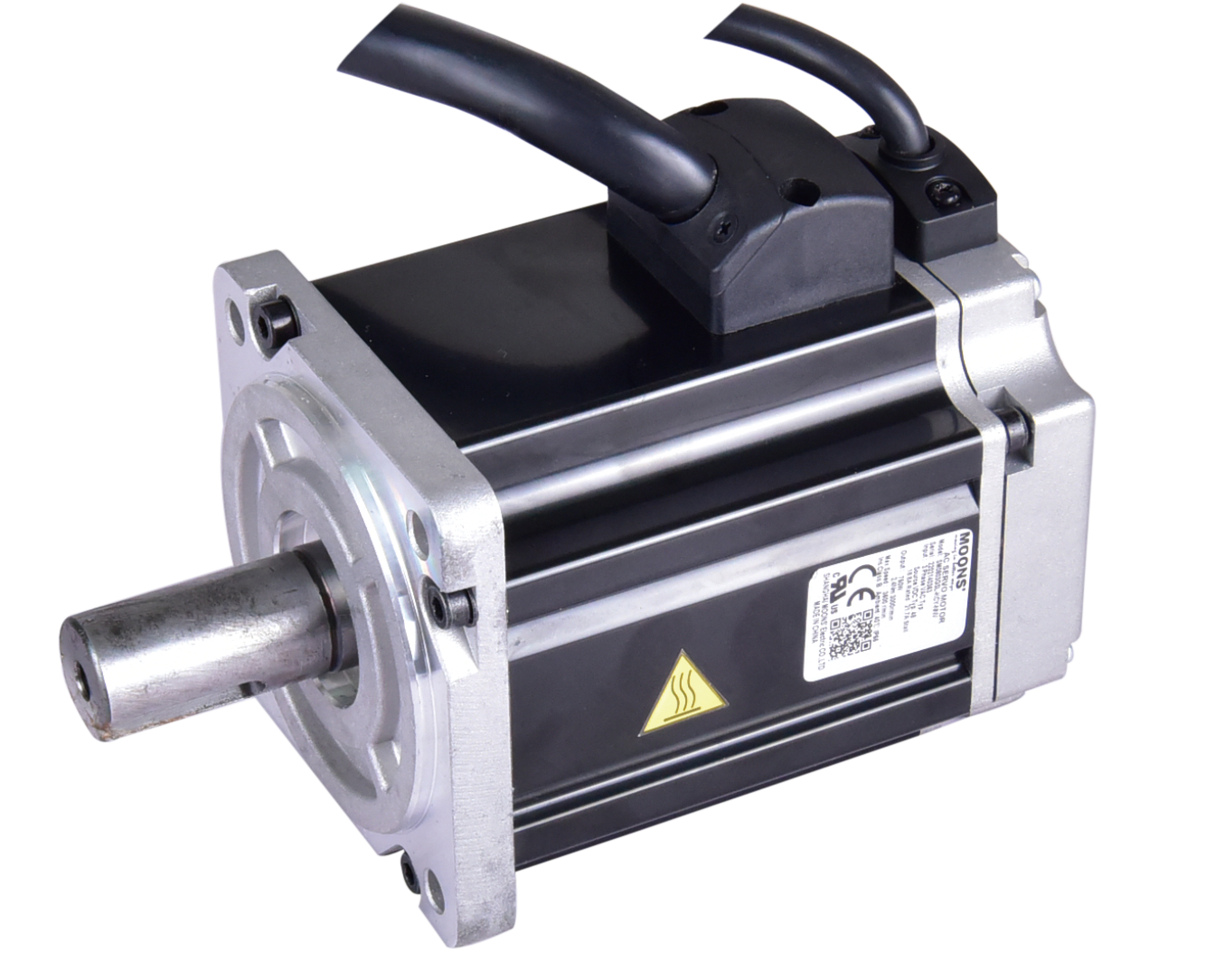

High performance brushless AC Servo Motor with 16-bit incremental magnetic encoder and electromagnetic brake. This motor is UL Recognized in the US and Canada, file no. E465363.
| Output Power | 750 W |
|---|---|
| Maximum Speed | 3,000 rpm |
| Rated Torque | 7.1 N*m |
| Motor Frame Size | 80 mm |
| Input Current | 18.8 A (rms) |
| Input Voltage | DC 48 V |
| Shaft Diameter | 19 mm |
| Weight | 2.6 kg |
