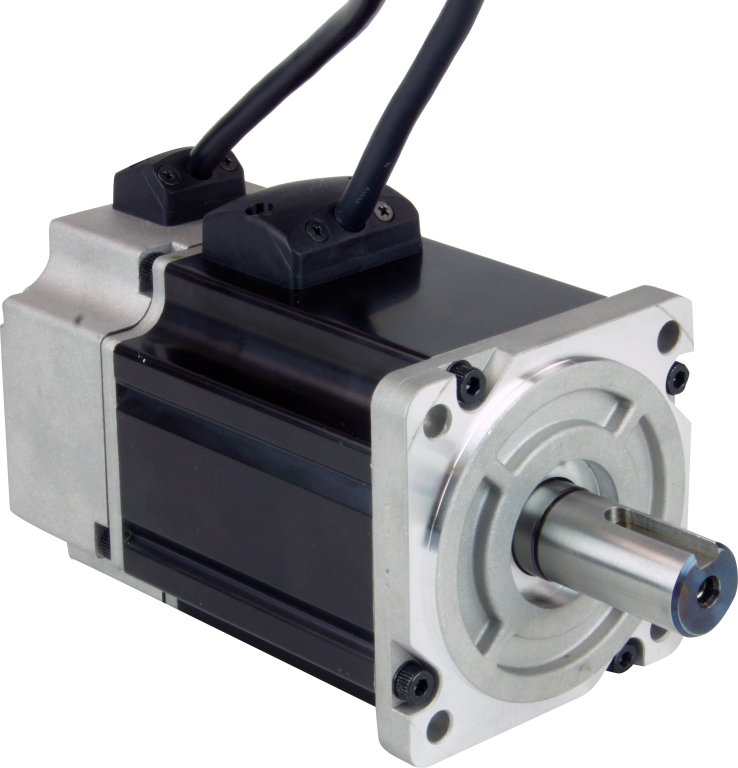

High performance brushless AC servo motor. Standard configuration includes high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271. Please note that a VL series gearhead purchased for this motor will require a special mounting adaptor and 2 weeks lead time. Please contact customer service for the price of this adaptor.
| Output Power | 750 W |
|---|---|
| Maximum Speed | 3,000 rpm |
| Rated Torque | 6.9 N*m |
| Motor Frame Size | 80 mm |
| Input Current | 4.5A rms |
| Input Voltage | 220 V AC |
| Shaft Diameter | 19 mm |
| Weight | 5.8 lbs |
