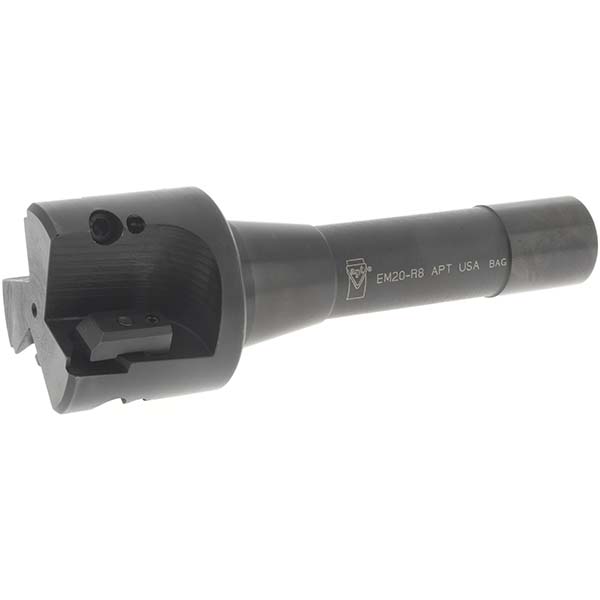

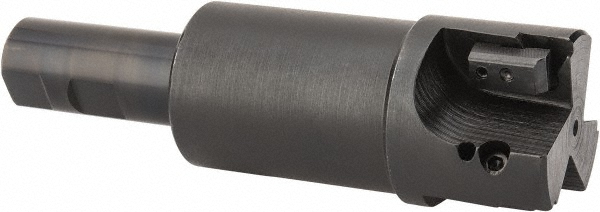

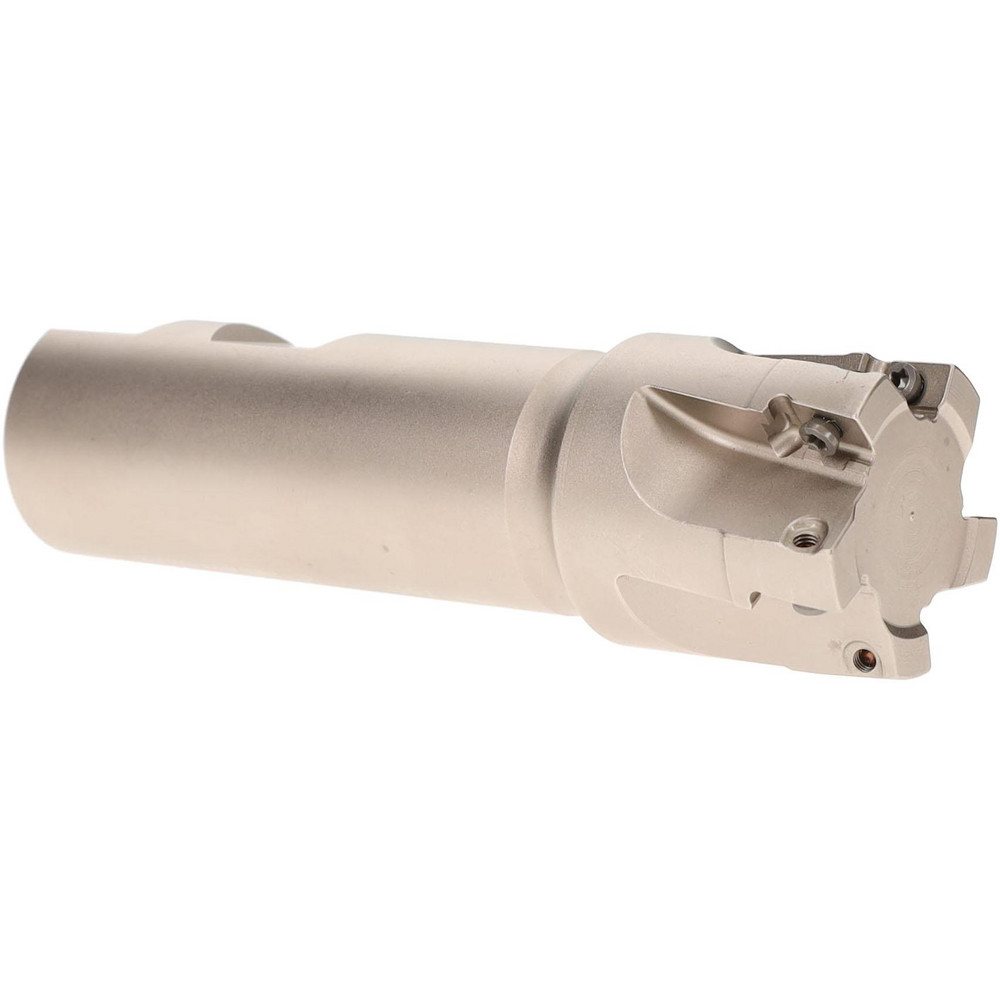

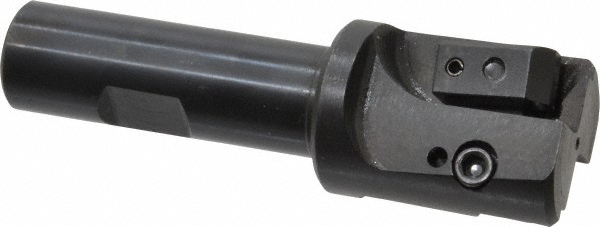

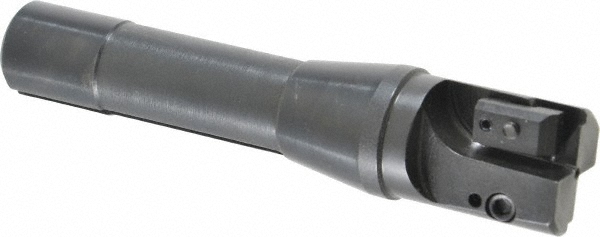

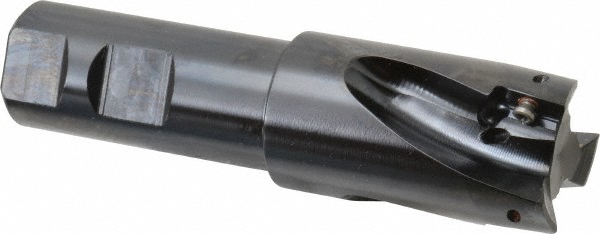

Uses (2) TPC 32...;TPG 32.;TPU 32. Inserts, 6-1/4" OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Inch) | 6-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Cutter Style | EML |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Series | Tri-Dex |
| Lead Angle | 90 |
| Shank Length (Inch) | 4 |
| Rake | Positive |
| Insert Compatibility | TPC 32...; TPU 32.; TPG 32. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 03126745 |
