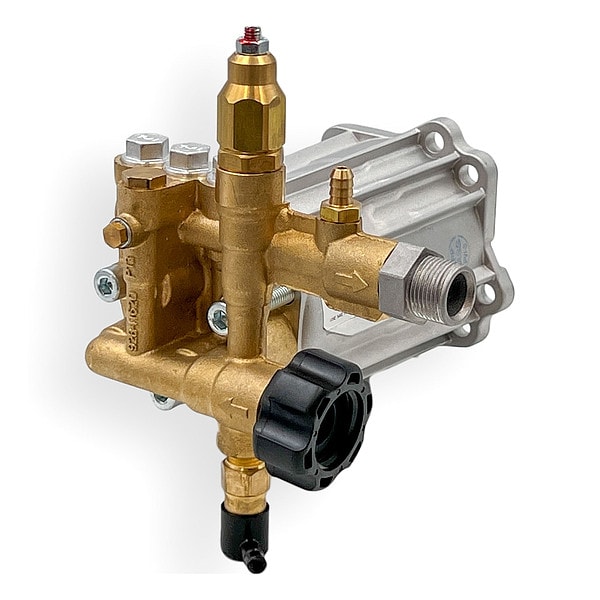

Kit RMV25G30D-EZ, w/Manual
| Item | Pressure Plunger Pump |
|---|---|
| Product Type | Pump Kit |
| Lubrication | Oil Bath |
| Motor Speed - Maximum | 3,400 RPM |
| Flow - Maximum | 2.5 gpm |
| Bearing Type | Ball |
| Shaft Outer Diameter | 3/4 in |
| Operating Pressure - Maximum | 3,000 psi |
| Seal Material | Buna-N |
| Discharge Connection Type | NPT |
| Pump Head Material | Forged Brass |
| Intake Connection Size | 3/4 in |
| Flange Type | Gas Engine |
| Motor Speed (Maximum) | 3,400 rpm |
| Plunger Material | Stainless Steel |
| Intake Connection Type | Garden Hose |
| Power Source | Engine |
| Required Gasoline Engine Horsepower (Maximum) | 6.8 HP |
| Piston Design | Axial |
| Required Electric Motor Horsepower (Maximum) | 5.1 HP |
| Operating Pressure (Maximum) | 3,000 psi |
| Shaft Type | Hollow |
| Flow Rate (Maximum) | 2.5 gpm |
| Drive Type | Direct-Mount |
| Discharge Connection Size | 22 mm |
| Discharge Pressure (Maximum) | 3,000 psi |
| Number of Pistons | 3 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
