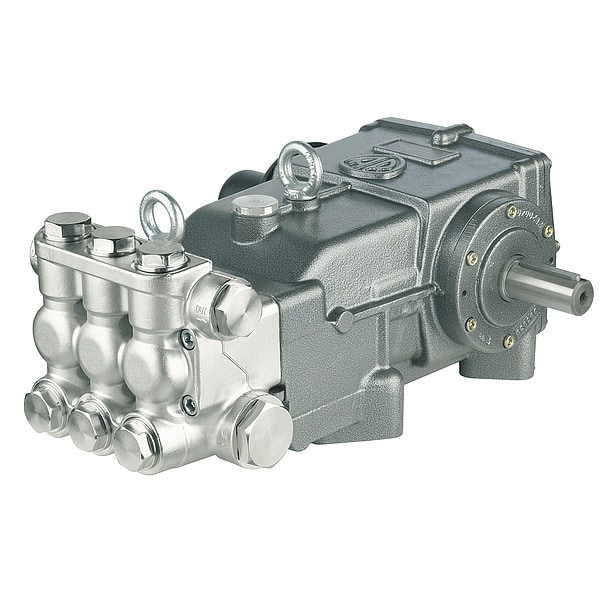

Pressure Washer Pump, 18 GPM, 1 1/2F x 1F
| Item | Pressure Plunger Pump |
|---|---|
| Type | Belt-Drive |
| Flow Capacity (GPM) | 18 gpm |
| RPM | 1,000 |
| Shaft Dia. | 35 mm |
| Inlet Port (In.) | 1-1/2 |
| HP Required @ 1000 PSI | 12.4 HP |
| Length (In.) | 22.1 |
| Manifold Material | Forged Brass |
| HP Required @ 2500 PSI | 30.9 HP |
| HP Required @ 1500 PSI | 18.5 HP |
| Height (In.) | 9.1 |
| Width (In.) | 18.1 |
| Discharge Port (In.) | 1 |
| Plunger | Ceramic |
| Connecting Rod | Bronze |
| Lubrication | Oil Bath |
| Driver Type | Electric Motor or Gasoline Engine |
| Pump Head | Forged Brass |
| HP Required @ 2000 PSI | 24.7 HP |
| Bearings | Roller |
| HP Required @ 4000 PSI | 49.4 HP |
| Max. Inlet Pressure (PSI) | 50 |
| Crankshaft | Hardened Steel |
| Discharge Pressure (PSI) | 4,000 |
| Max. Fluid Temp. (F) | 140 |
| HP Required @ 3500 PSI | 43.2 HP |
| HP Required @ 500 PSI | 6.2 HP |
| Seal | W-1 & W-2 |
| Crankcase | Cast Iron |
| HP Required @ 3000 PSI | 37.1 HP |
| Application | High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting |
| Connecting Rod Material | Zinc-Aluminum |
| Pump Head Material | Nickel Plated Brass |
| Discharge Connection Size | 1 in |
| Hydraulic Motor Pressure @ 3000 psi | Not Applicable |
| Number of Pistons | 3 |
| Intake Connection Size | 1-1/2 in |
| Shaft Outer Diameter | 35 mm |
| Operating Pressure (Maximum) | 4,000 psi |
| Overall Height | 9.1 in |
| Crankshaft Material | Hardened Steel |
| Hydraulic Motor Pressure @ 2000 psi | Not Applicable |
| Flow Rate (Maximum) | 18.5 gpm |
| Flow Rate (Minimum) | 1.85 gpm |
| Media Temperature (Maximum) | 140 Degrees F |
| Hydraulic Motor Pressure @ 1500 psi | Not Applicable |
| Motor Speed (Maximum) | 1,000 rpm |
| Discharge Pressure (Maximum) | 4,000 psi |
| Discharge Connection Type | BSP |
| Crankcase Material | Cast Iron |
| Required Gasoline Engine Horsepower (Maximum) | 50.8 HP |
| Seal Type | Mechanical Type 1, Mechanical Type 2 |
| Hydraulic Motor Pressure @ 1000 psi | Not Applicable |
| Flange Type | Horizontal Plunger Pump |
| Bearing Type | Roller |
| Required Electric Motor Horsepower (Maximum) | 49.4 HP |
| Drive Type | Belt-Drive |
| Intake Connection Type | BSP |
| Shaft Type | Solid |
| Hydraulic Motor Pressure @ 500 psi | Not Applicable |
| Overall Width | 18.1 in |
| Hydraulic Motor Pressure @ 2500 psi | Not Applicable |
| Piston Design | Triplex |
| Plunger Material | Ceramic |
| Hydraulic Motor Flow Rate (Maximum) | Not Applicable |
| Overall Length | 22.1 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
