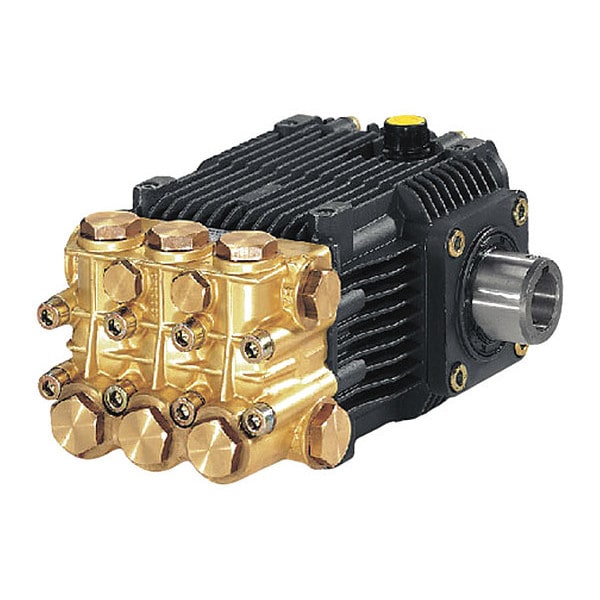

Pump, 4/3000 1750RPM
| Item | Pressure Plunger Pump |
|---|---|
| Overall Length | 10.37 in |
| Intake Connection Size | 1/2 in |
| Shaft Outer Diameter | 1-1/8 in |
| Discharge Connection Type | NPT |
| Number of Pistons | 3 |
| Drive Type | Direct-Mount |
| Discharge Pressure (Maximum) | 3,000 psi |
| Overall Width | 8.36 in |
| Operating Pressure (Maximum) | 3,000 psi |
| Media Temperature (Maximum) | 140 Degrees F |
| Motor Speed (Maximum) | 1,750 rpm |
| Flange Type | NEMA 182-184 |
| Power Source | Electric Motor |
| Lubrication | Oil Bath |
| Required Electric Motor Horsepower (Maximum) | 8.2 HP |
| Piston Design | Triplex |
| Intake Connection Type | FNPT |
| Overall Height | 6.77 in |
| Shaft Type | Hollow |
| Manufacturers Warranty Length | 5 yr |
| Required Gasoline Engine Horsepower (Maximum) | 10.9 HP |
| Plunger Material | Ceramic |
| Pump Head Material | Forged Brass |
| Connecting Rod Material | Aluminum |
| Series Family | RKA |
| Discharge Connection Size | 3/8 in |
| Wetted Material | Brass |
| Flow Rate (Maximum) | 4 gpm |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
