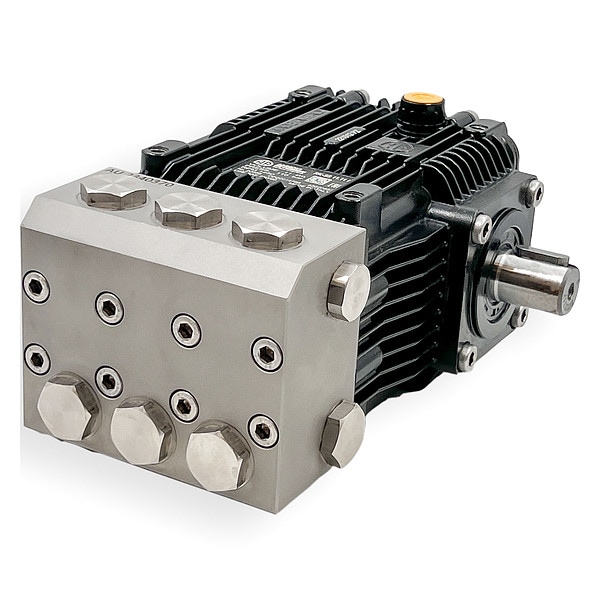

Pump
| Item | Pressure Plunger Pump |
|---|---|
| Lubrication | Oil Bath |
| Discharge Pressure (Maximum) | 1,500 psi |
| Flow Rate (Maximum) | 4.2 gpm |
| Discharge Connection Type | NPT |
| Pump Head Material | 316 Stainless Steel |
| Required Electric Motor Horsepower (Maximum) | 4.3 HP |
| Operating Pressure (Maximum) | 3,000 psi |
| Number of Pistons | 3 |
| Motor Speed (Maximum) | 1,750 rpm |
| Flange Type | Gas Engine |
| Shaft Outer Diameter | 15/16 in |
| Required Gasoline Engine Horsepower (Maximum) | 5.7 HP |
| Drive Type | Belt-Drive |
| Plunger Material | Ceramic |
| Shaft Type | Solid |
| Power Source | Solid Shaft |
| Piston Design | Triplex |
| Intake Connection Size | 1/2 in |
| Intake Connection Type | FNPT |
| Discharge Connection Size | 3/8 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
