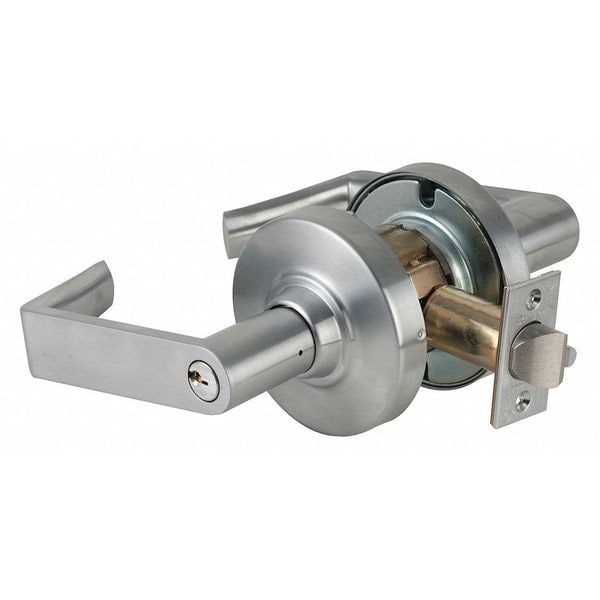

Electric Cylindrical Lockset W/RX
| Item | Door Lockset |
|---|---|
| For Use With | Access Control, Power Transfer |
| Includes | (2) Keys, Latch, Strike |
| Style | ND Rhodes |
| Series | ND |
| Application | Commercial |
| Features | Clutch Lever, Rex Switch |
| Cylinder Core Type | Conventional Core Cylinder |
| Number of Pins | 6 |
| Standards | ANSI A156.2 |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Lockset Function | Storeroom |
| ADA Compliant | Yes |
| Lockset Grade | 1 |
| Backset | 2 3/4 in |
| Lockset Finish | Satin Chrome |
| Number of Keys | 2 |
| Key Material | Nickel Silver |
| Lockset Fire Rating | 3 hr |
| Strike Type | ANSI |
| Location Type | Commercial |
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Voltage | 24V AC/DC |
| Ligature Resistant | No |
| Keyway Type | Schlage |
| Key Type | Keyed Different |
| Required Door Thickness | 1-5/8 in to 2-1/8 in |
| Handle Material | Cast Zinc |
| Electrical/Mechanical | Electrical |
| Fire Rating - Door Hardware | 3 hr |
| Lockset Performance Strength | Heavy Duty |
| Mortise/Cylindrical | Cylindrical |
| Visual Indicator Message | Locked, Unlocked |
| Strike Plate Width | 1-1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Type | Electrical |
| Fire Rating | 3 hr |
| Knob/Handle Material | Cast Zinc |
| Performance Grade | 1 |
| Door Thickness - Maximum | 2-1/8 in |
| ANSI Grade | 1 |
| Door Thickness - Minimum | 1-5/8 in |
| Lockset Style | ND Rhodes |
| Strike Plate Height | 4-7/8 in |
| Visual Indicator Location | Not Applicable |
| Locking/Unlocking Access - Outside | Keyway |
| Failure Mode | Fail Secure |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
