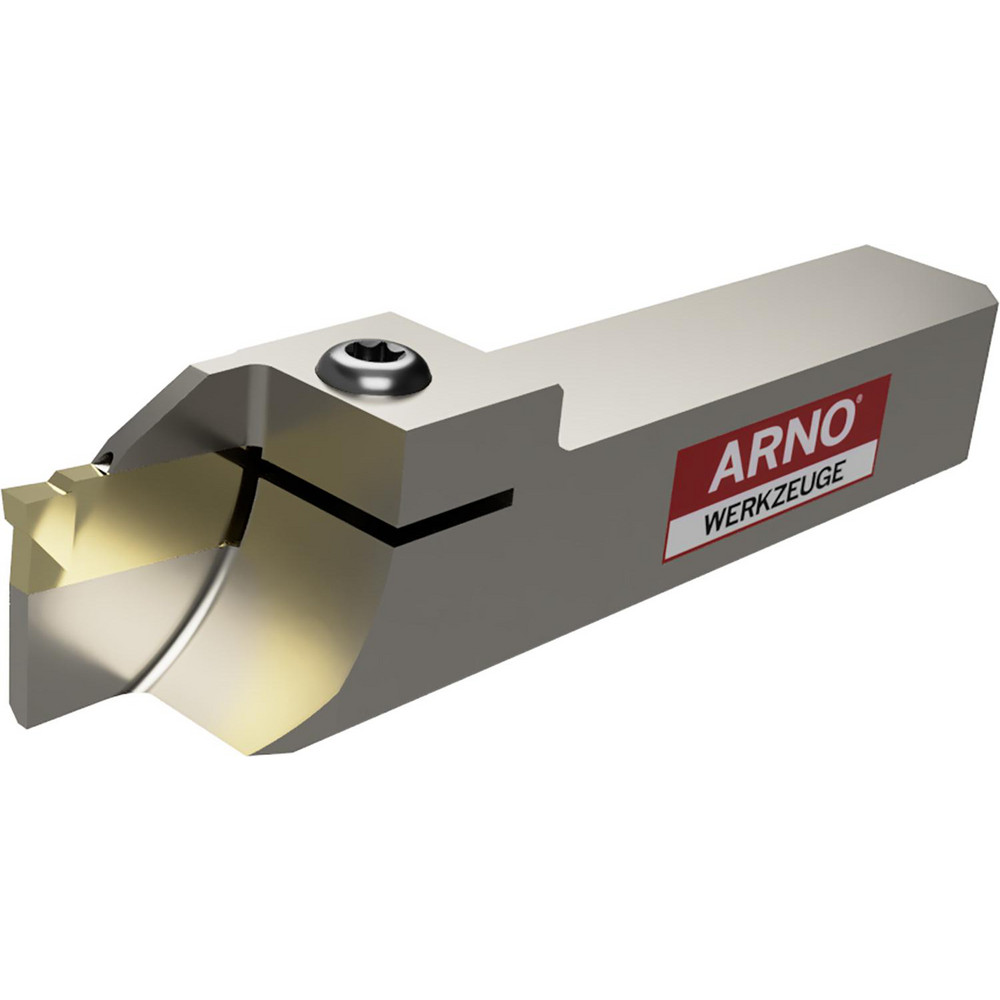

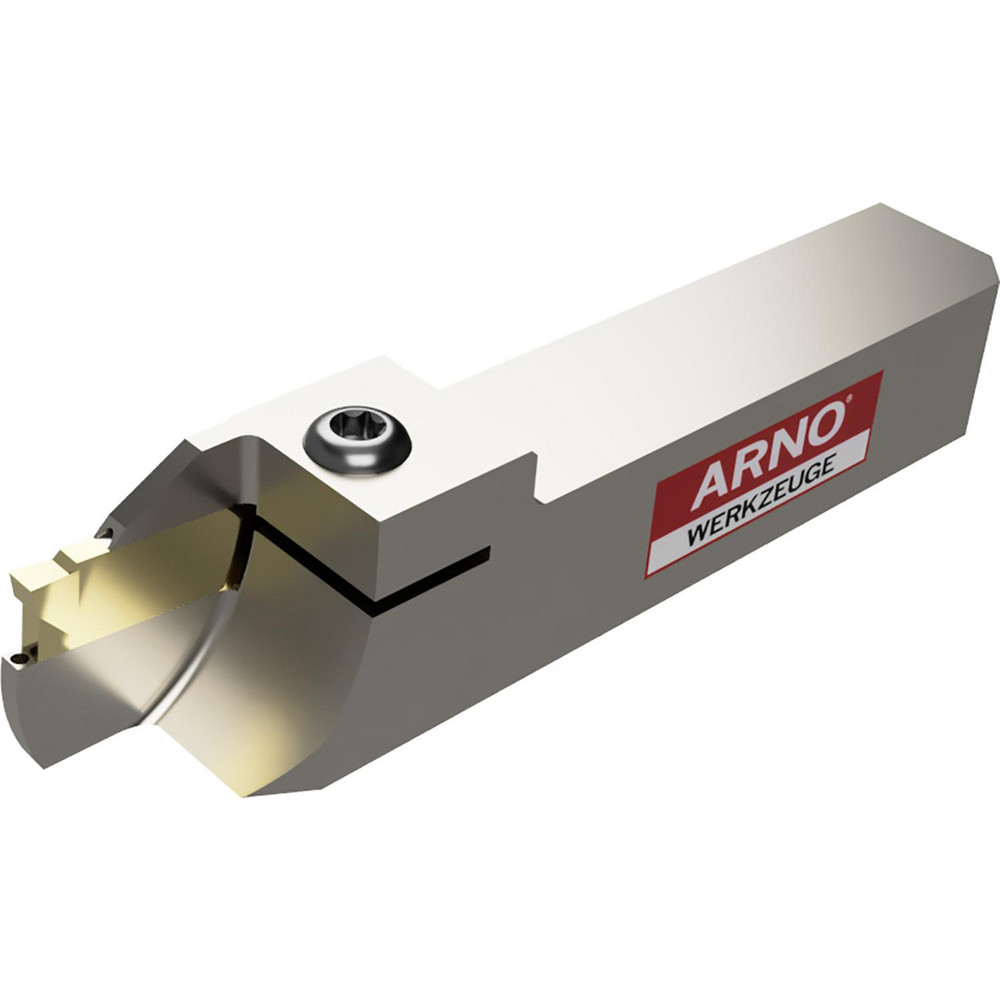

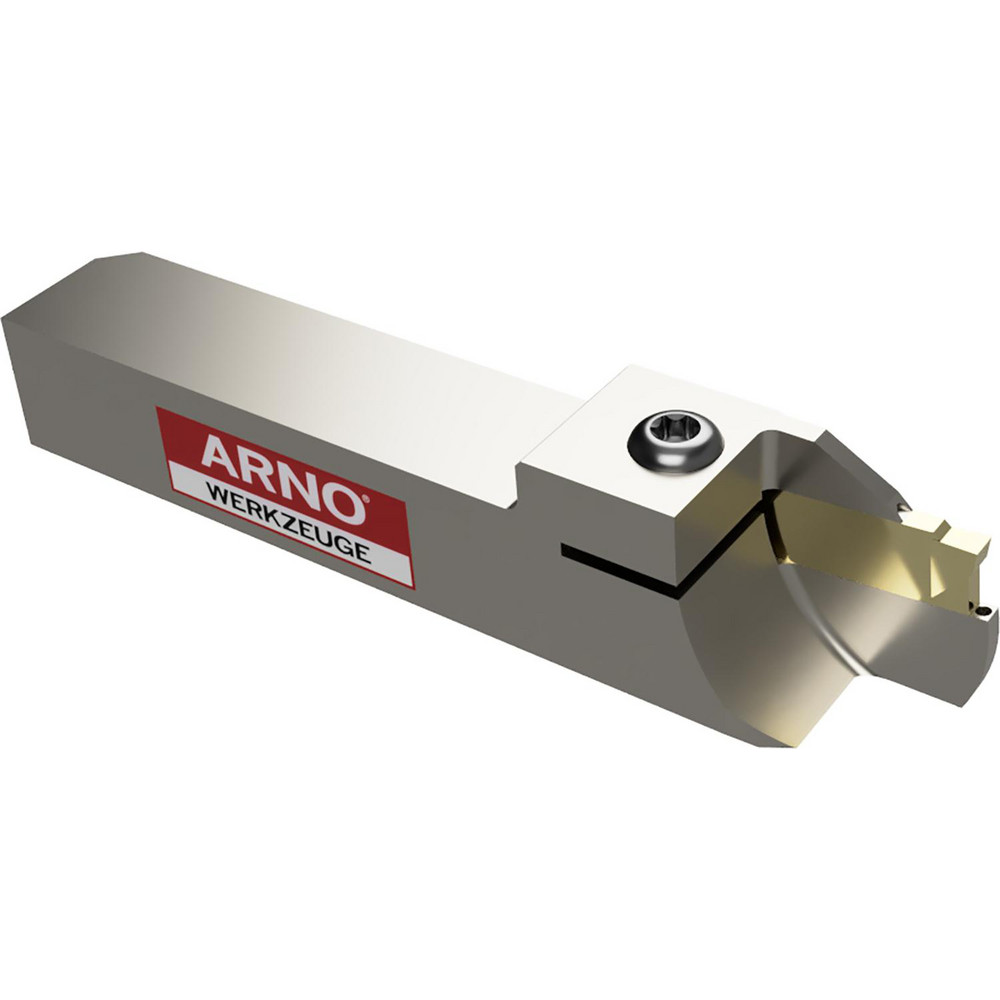

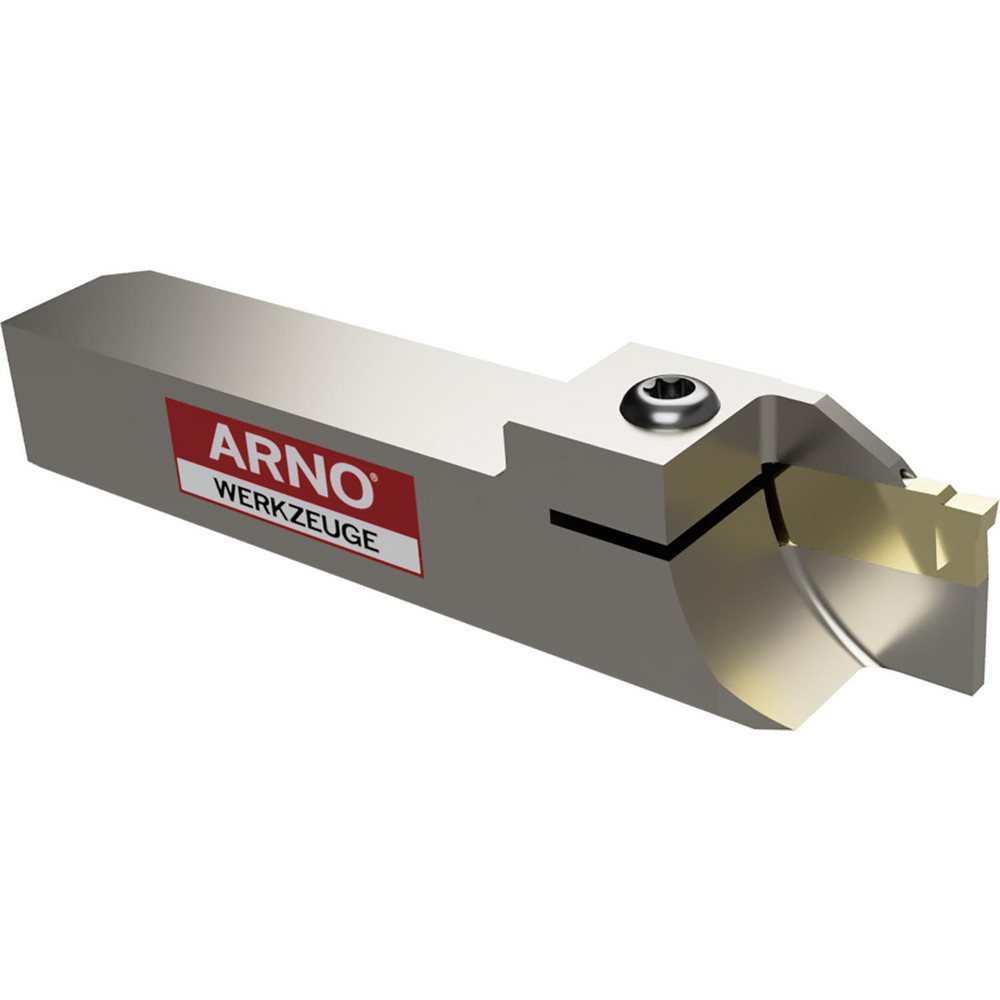

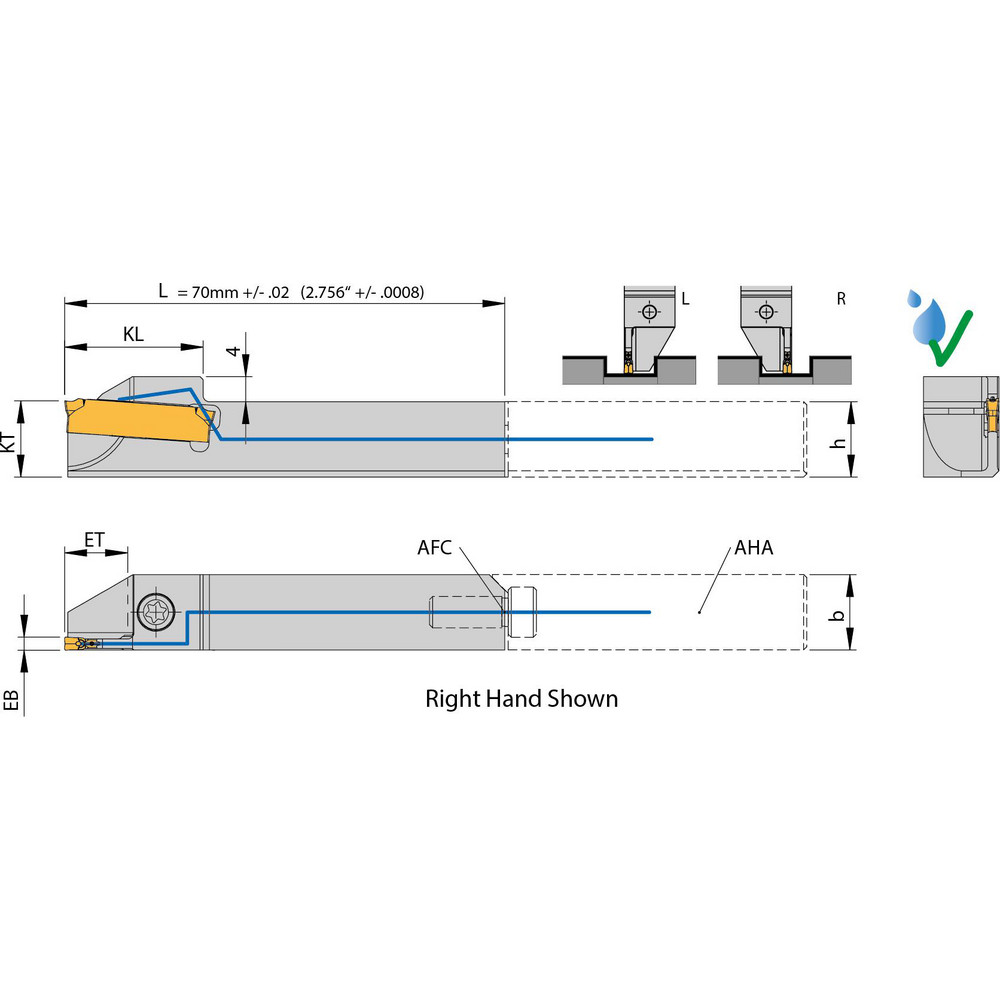

0.6299 x 0.6299" Shank, Uses SA24-20... Inserts, Series SA Part & Groove for AFC
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3386 |
| Toolholder Style | ARNO Fast Change |
| Multi-use Tool | No |
| Compatible Insert Size Code | SA24-20... |
| Overall Length (Decimal Inch) | 2.7560 |
| Insert Holding Method | Screw |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (Decimal Inch) | 1.6143 |
| Series | SA Part & Groove for AFC |
| Cutting Tool Application | Grooving; Parting |
| Minimum Insert Width (Decimal Inch) | 0.0780 |
| Maximum Insert Width (Decimal Inch) | 0.0780 |
| UNSPSC Code | 23153308 |
| Blade Width (mm) | 2.00 |
| Blade Width (Decimal Inch) | 0.0787 |
| Toolholder Material | Alloy Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 99043739 |
