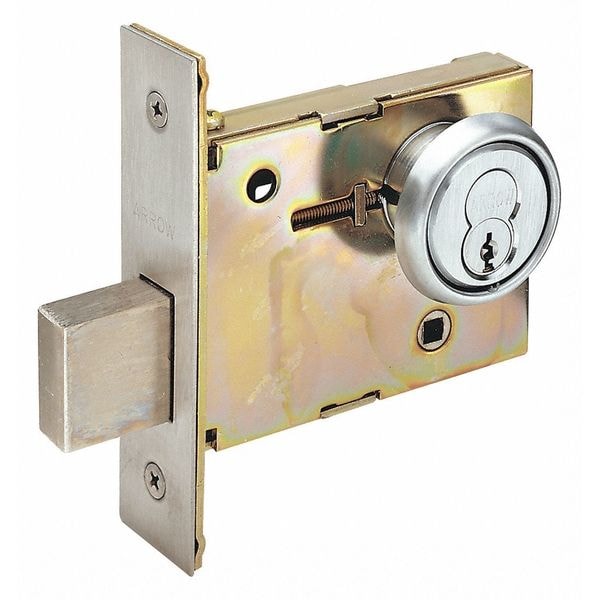

Deadbolt, Mortise, Satin Chrome Finish
| Mortise / Cylindrical | Mortise |
|---|---|
| Location Type | Commercial |
| Lockset Grade | Not Graded |
| Series | N |
| For Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | AR4 |
| Key Type | Keyed Different |
| Standards | ANSI A156.5 |
| ADA Compliant | No |
| Ligature Resistant | No |
| Backset | 2-3/4 in |
| Pins | 6 |
| Security Type | Heavy-Duty |
| Material | Chrome |
| Item | Deadbolt Lock |
| Mortise/Cylindrical | Mortise |
| Includes | (2) Keys, Strike Plate |
| Strike Dim. | 1-1/8 in x 3-1/2 in |
| For Use With | Wood or Metal Doors |
| Throw Length | 1 in |
| Strike | Square Corner |
| Lockset Fire Rating | 3 hr |
| Cylinder | 6 Pin |
| Number of Keys | 2 |
| Finish | Satin Chrome |
| Application | Commercial |
| Number of Pins | 6 |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI Grade | Not Applicable |
| Visual Indicator Message | No Message |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Includes Core | Core Included |
| Locking/Unlocking Access - Inside | Keyway |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Width | 1-1/8 in |
| Door Thickness - Minimum | Not Applicable |
| Strike Plate Height | 3-1/2 in |
| Cylinder Core Type | Conventional Core Cylinder |
| Door Thickness - Maximum | 1-3/4 in |
| Fire Rating | 3 hr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
