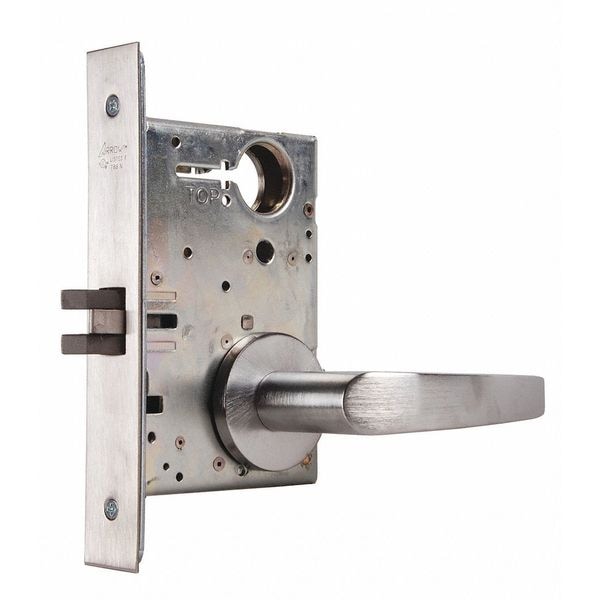

Door Lever Lockset, Mechanical, Passage
| Backset | 2 3/4 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Metal or Wood Doors |
| Includes | Plastic Template, Screw Pack, Single Side Indicator Plate with Mechanism |
| Key Type | Keyed Alike |
| Keyway Type | Schlage |
| Location Type | Commercial, Residential |
| Lockset Function | Passage |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Mortise |
| Number of Pins | 0 |
| Required Door Thickness | 1-3/4 in |
| Series | BM |
| Style | Tapered No Return |
| Number of Keys | 2 |
| Strike Dim. | 4-7/8 in x 1-1/8 in |
| Lockset Fire Rating | 3 hr |
| Voltage | Not Applicable |
| Handle Material | Brass |
| Mortise / Cylindrical | Mortise |
| Lockset Finish | Satin Chrome |
| ADA Compliant | Yes |
| Key Material | Nickel Silver |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Type | Straight Lip |
| Item | Door Lockset |
| Ligature Resistant | No |
| Features | Master Keying |
| Lockset Performance Strength | Heavy Duty |
| Standards | ANSI A156.13, UL and ULC Listed |
| Application | Commercial, Hospitals, Schools |
| Strike | Includes |
| Visual Indicator Message | No Message |
| Product Type | Trim |
| Lockset Function ANSI Code | F01 |
| Strike Plate Width | 1-1/8 in |
| Includes Core | Core Not Included |
| Lockset Type | Mechanical |
| Fire Rating | 3 hr |
| Locking/Unlocking Access - Outside | Not Lockable |
| Visual Indicator Location | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | Curved Lip |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Hand Orientation | Non-Handed |
| Knob/Handle Material | Brass |
| Locking/Unlocking Access - Inside | Not Lockable |
| Performance Grade | 1 |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
