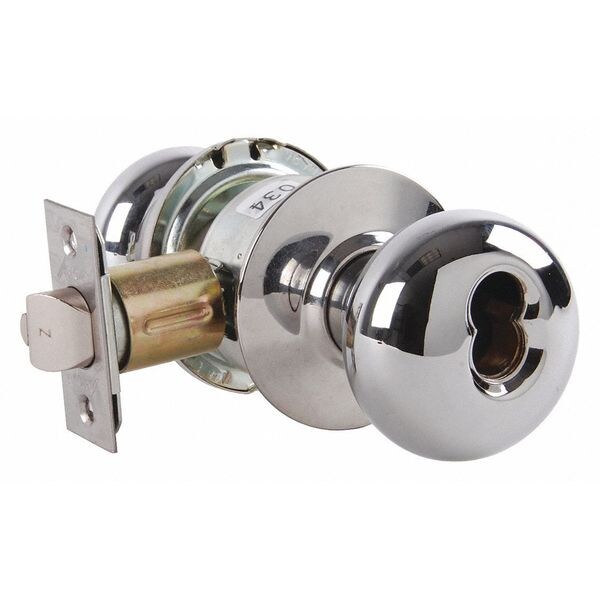

Knob Lockset, Mechanical, Entrance/Office
| Lockset Finish | Bright Chrome |
|---|---|
| Lockset Grade | 2 |
| Lockset Handle Type | Knob |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Keyway Type | SFIC |
| Key Type | Keyed Different |
| Series | MK |
| Key Material | Brass |
| Electrical/Mechanical | Mechanical |
| Backset | 2-3/8 in |
| Number of Keys | 1 |
| Strike Dim. | 2-3/4 in x 1-1/8 in |
| Strike Type | T-Strike |
| For Use With | Wood or Metal Doors |
| ADA Compliant | No |
| Ligature Resistant | No |
| Pins | 0.8571 |
| Item | Door Lockset |
| Style | Round |
| Standards | ANSI/BHMA A156.2, CUL, FF-H-106C, UL Listed |
| Includes | Latch, Strike |
| Location Type | Commercial |
| Knob Material | Wrought Brass |
| Lockset Performance Strength | Heavy Duty |
| Lockset Fire Rating | 3 hr |
| Number of Pins | 6, 7 |
| Voltage | Not Applicable |
| ANSI Grade | 2 |
| Strike Plate Lip Length | 1-1/4 in |
| Knob/Handle Material | Wrought Brass |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Bright Chromium-Plated |
| Visual Indicator Location | Inside/Outside |
| Mortise/Cylindrical | Cylindrical |
| Includes Hardware | Hardware Included |
| Locking/Unlocking Access - Outside | Keyway |
| Application | Commercial |
| Door Thickness - Minimum | 1-3/8 in |
| Strike Plate Height | 2-3/4 in |
| Lockset Function ANSI Code | F109 |
| Lockset Style | Tudor |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| Locking/Unlocking Access - Inside | Push Button |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Width | 1-1/8 in |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Type | Mechanical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
