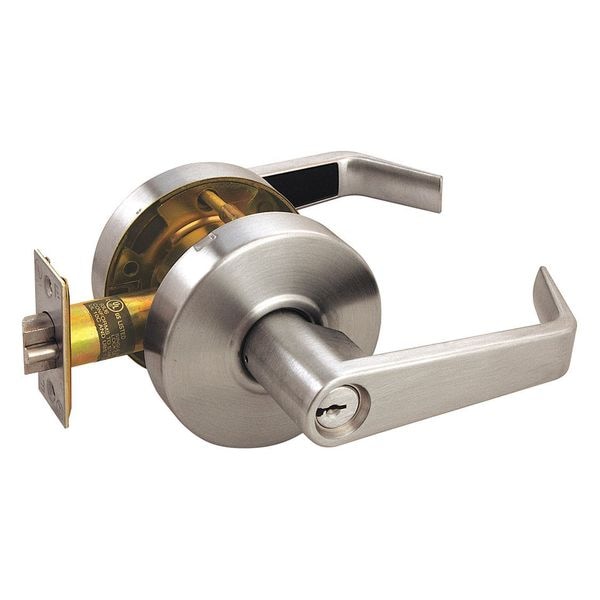

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | RL Angled |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Arrow A |
| Key Type | Keyed Alike |
| ADA Compliant | Yes |
| Features | Finishes and Functions, THERL Series Has Been Enhanced to Offer Removable Through Bolts and A Wide Variety of Designs |
| Location Type | Commercial |
| Includes | Hardware |
| Handle Material | Zinc |
| Mortise/Cylindrical | Cylindrical |
| Strike Type | Full Lip |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Series | RL |
| Key Material | Brass |
| Number of Keys | 2 |
| Item | Door Lockset |
| Lockset Fire Rating | 3 hr |
| For Use With | Wood, Steel Doors |
| Backset | 2-3/4 in |
| Lockset Performance Strength | Medium Duty |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Number of Pins | 6, 7 |
| Ligature Resistant | No |
| Standards | ANSI, UL Listed |
| Finish | Satin Chrome |
| Keying | Keyed Different |
| Fire Rated | 3 hr. |
| Grade | 2 |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Function | Entry |
| Pins | 6 |
| Cylinder | Yes |
| Lockset Type | Mechanical |
| Includes Hardware | Hardware Included |
| Performance Grade | 2 |
| Locking/Unlocking Access - Outside | Keyway |
| Knob/Handle Material | Zinc |
| Hand Orientation | Non-Handed |
| Includes Core | Core Not Included |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Door Thickness - Minimum | 1-3/8 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI Grade | 2 |
| Lockset Style | RL Rose |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Maximum | 1-3/4 in |
| Strike Plate Width | 1-1/4 in |
| Application | Commercial, Multiple Family Residential |
| Lockset Function ANSI Code | F109 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 4-7/8 in |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
