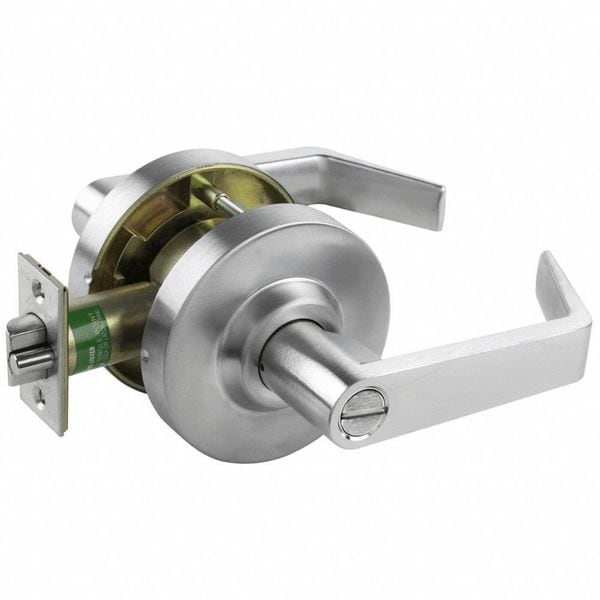

Lever Lockset, Mechanical, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | SR Rigid Sierra |
| Required Door Thickness | 2 1/8 in |
| Lockset Finish | Zinc Dichromate |
| Keyway Type | Schlage CS |
| Key Type | Keyed Different |
| Mortise/Cylindrical | Cylindrical |
| Backset | 2-3/4 in |
| Ligature Resistant | No |
| Strike Type | ANSI |
| ADA Compliant | Yes |
| Number of Pins | 6 |
| Lockset Fire Rating | 3 hr |
| Strike Dim. | 4 7/8 in |
| Cylinder Core Type | Schlage CS Keyway; SFIC; SIC |
| Key Material | Brass |
| Location Type | Commercial |
| Standards | ANSI/BHMA, CULFF-H-106C, UL Listed |
| Voltage | Not Applicable |
| Item | Door Lockset |
| Number of Keys | 2 |
| Features | Freewheeling Lever |
| Fire Rating - Door Hardware | 3 hr |
| For Use With | Label Single Swinging Doors |
| Knob/Handle Material | Brass |
| Lockset Style | SR Sierra |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI Grade | 2 |
| Performance Grade | 2 |
| Application | Commercial, Hotels, Office, Restaurants |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Dead Latch |
| Lockset Function ANSI Code | F109 |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
