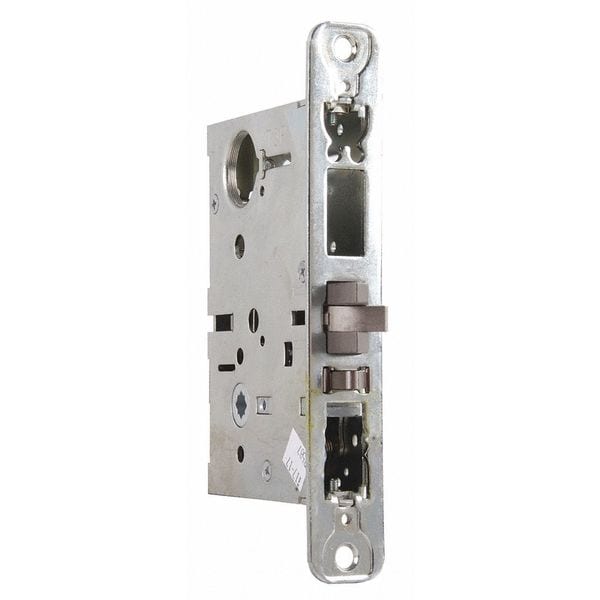

Mortise Lockset, 40H Lock Body, Mech.
| Item | Deadbolt Lock |
|---|---|
| Backset | 2 3/4 in |
| Series | AM |
| Pins | 0 |
| Location Type | Commercial |
| Required Door Thickness | 1 3/4 in |
| Number of Keys | 2 |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Includes | Mounting Hardware |
| Standards | ANSI A156.13, FF-H-106C Series 86 and 87, UL and ULC Listed |
| Electrical/Mechanical | Mechanical |
| Style | 40H Lock Body |
| Strike Type | Straight Lip |
| For Use With | Hollow Metal and Wood Doors |
| Number of Pins | 0 |
| Key Material | Nickel Silver |
| Case Material | Steel |
| Features | Master Keying |
| Lockset Function | Storeroom |
| Mortise / Cylindrical | Mortise |
| Lockset Handle Type | Knob |
| Product Type | Mortise Lockset |
| Includes Hardware | Hardware Included |
| Lockset Style | 40H Lock Body |
| Performance Grade | 1 |
| Lockset Type | Mechanical |
| ANSI Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt, Dead Bolt |
| Strike Plate Width | 1-1/4 in |
| Case Depth | 5 7/8 in |
| Knob/Handle Material | Steel |
| Lockset Function ANSI Code | F07 |
| Door Thickness - Maximum | 1-3/4 in |
| Strike Plate Thickness | 1 1/8 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Hand Orientation | Non-Handed |
| Application | Commercial |
| Strike Plate Height | 4-7/8 in |
| Case Height | 4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
