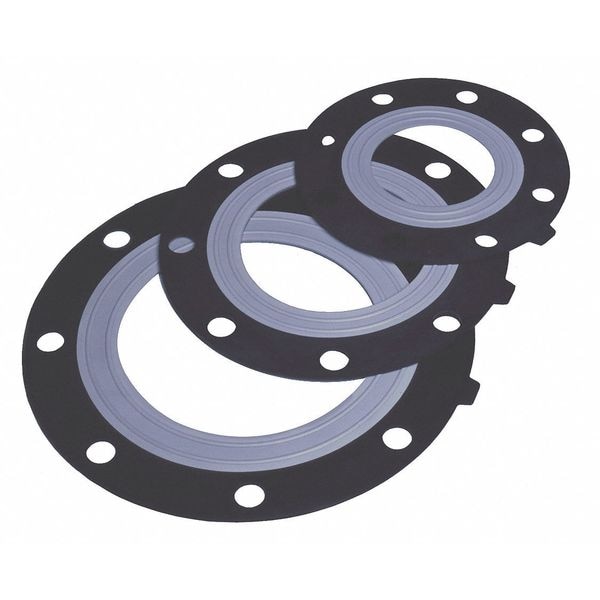

Flange Gasket, 1" Inside Dia., Black
| Pipe Size | 4 in |
|---|---|
| Outside Dia. | 8-29/32 in |
| Inside Dia. | 1 in |
| Bolt Holes | 8 |
| Thickness | 5/64 in |
| Material of Construction | EPDM with PTFE Ring |
| Flange Class | Class 150 |
| Color | Black |
| Item | Full Face Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Continuous Max. Temp. (F) | 250 deg F |
| Temp. Range (F) | -40 Degrees to 250 Degrees |
| Width | 0.0781 in |
| Type | ANSI 150 lb Gasket |
| FDA Approved | No |
| For Flange ANSI Class | 150 |
| Binder Material | None |
| Included Fasteners | Not Applicable |
| Metal Detectable Gasket | No |
| Number of Bolt Holes | 8 |
| Insert Material | PTFE |
| Bolt Hole Diameter | 13/16 in |
| System of Measurement | Inch |
| Inside Diameter | 4-1/2 in |
| Maximum Operating Pressure | 230 psi |
| Gasket Type | Full-Face Gasket |
| Bolt Circle Diameter | 7-1/2 in |
| Minimum Operating Temperature | -40 deg F |
| Hardness | Shore 95 to 100 A |
| Gasket Material | EPDM |
| For Pipe Size | 4 in |
| Maximum Operating Temperature | 250 deg F |
| X-Ray Detectable | No |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
