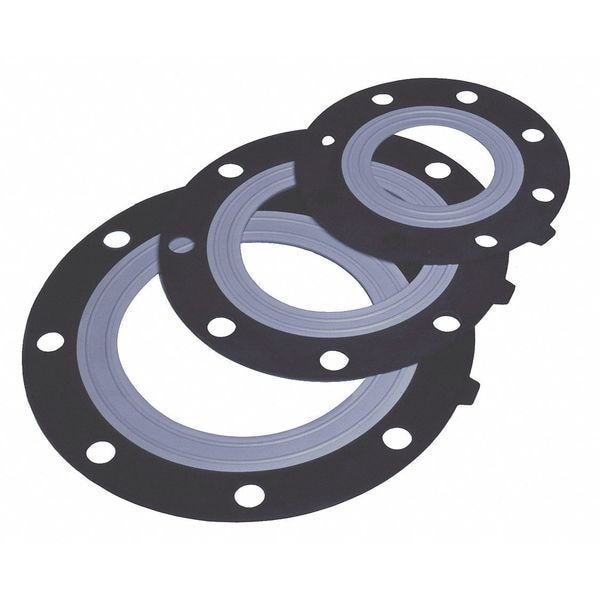

Flange Gasket, 11-7/64" Inside Dia., Black
| Pipe Size | 12 in |
|---|---|
| Outside Dia. | 18-29/32 in |
| Inside Dia. | 11-7/64 in |
| Bolt Holes | 12 |
| Thickness | 5/64 in |
| Material of Construction | EPDM |
| Flange Class | Class 150 |
| Color | Black |
| Item | Full Face Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -40 Degrees to 195 Degrees |
| Width | 0.0781 in |
| Continuous Max. Temp. (F) | 195 deg F |
| Type | ANSI 150 lb Gasket |
| Metal Detectable Gasket | No |
| Bolt Hole Diameter | 1 in |
| Included Fasteners | Not Applicable |
| Insert Material | EPDM |
| Binder Material | None |
| For Flange ANSI Class | 150 |
| FDA Approved | No |
| Number of Bolt Holes | 12 |
| Minimum Operating Temperature | -40 deg F |
| Inside Diameter | 12-3/4 in |
| X-Ray Detectable | No |
| Gasket Material | EPDM |
| Maximum Operating Temperature | 195 deg F |
| Bolt Circle Diameter | 17 in |
| Hardness | Shore 65 to 70 A |
| System of Measurement | Inch |
| For Pipe Size | 12 in |
| Maximum Operating Pressure | 230 psi |
| Gasket Type | Full-Face Gasket |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
