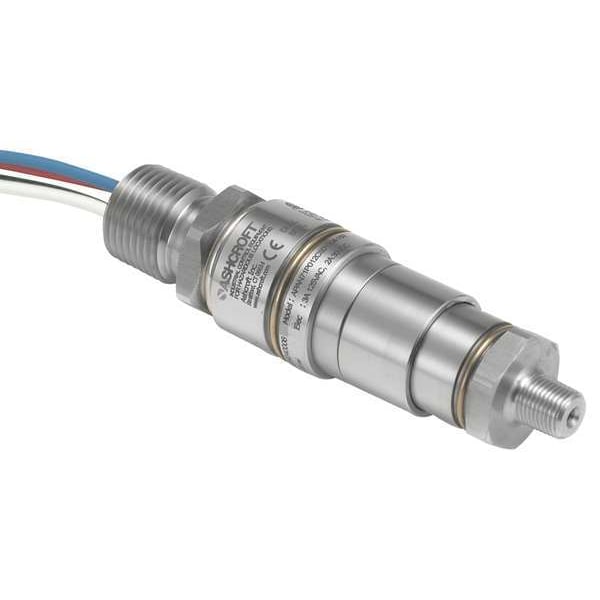

Interruptor de presión a prueba de explosión, SPDT, de 6 a 30 psi.
| Item | Explosion Proof Pressure Switch |
|---|---|
| Pressure Switch Range | 6 to 30 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Safety Rating | ATEX, FM, IECEx |
| IP Rating | 67 |
| Circuit Type | Not Applicable |
| DC Contact Rating | 3A @ 28V DC Inductive, 5A @ 28V DC Resistive |
| Burst Pressure | 1,000 psi |
| Standards | CE, CRN, CSA, ROHS, UL |
| Electrical Connection | 1/2 in MNPT Conduit Connector with 3-18 AWG 12 in Wire Leads |
| Process Connection | 1/4 in MNPT |
| Housing Material | Stainless Steel |
| Off Set Point | Field Adjustable |
| AC Contact Rating | 5A at 125/250V AC |
| Wetted Materials | 316 Stainless Steel Welded Diaphragm |
| Compatible With | Air, Liquids |
| On Set Point | Field Adjustable |
| Range | 6 to 30 psi |
| NEMA Rating | 7, 9 |
| Operating Temp. Range | -40 to 210 deg F |
| Power Required | 10A at 125/250V AC, 6A at 30V DC |
| Contact Form | SPDT |
| Series | A-Series |
| Pressure Connection Type | 1/4" MNPT |
| Pressure - Maximum | 30 psi |
| Hazardous Location Specification | Class I, Div 1, Group A, B, C, D, Class II, Div 1, Group E, F, G |
| Adjustable Range Type | Field Adjustable |
| Resistance Properties | Explosion Proof |
| Pressure - Minimum | 6 psi |
| Operating Temperature - Minimum | -40 deg F |
| Set Point - Minimum | 4.5 psi |
| Set Point - Maximum | 30 psi |
| Overall Height | 3.13 in |
| Overall Width | 1.13 in |
| Actuator Style | Diaphragm |
| Compatible Media | Compressed Air, Liquid |
| Electrical Design Output | Not Applicable |
| Operating Temperature - Maximum | 212 deg F |
| NEMA Enclosure Rating | 6 |
| Package Quantity | 1 |
