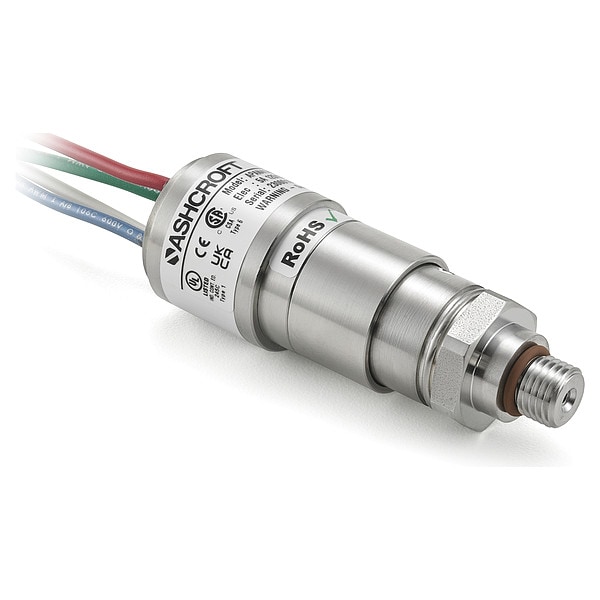

Interruptor de presión, SPDT, 500 a 5000 psi
| Item | Pressure Switch |
|---|---|
| Pressure Switch Range | 500 to 5,000 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Power Required | 10A at 125/250V AC, 6A at 30V DC |
| Burst Pressure | 15,000 psi |
| Compatible With | Air, Liquids |
| Standards | CE, CRN, CSA, ROHS, UL |
| Circuit Type | Not Applicable |
| AC Contact Rating | 5A at 125/250V AC |
| Process Connection | 7/16 in SAE |
| Wetted Materials | 316 Stainless Steel Piston and Buna-N O-Ring |
| IP Rating | 67 |
| On Set Point | Field Adjustable |
| Housing Material | Stainless Steel |
| Electrical Connection | 3-18 AWG PVC Insulated 12 in Base Wire Leads |
| Contact Form | SPDT |
| Operating Temp. Range | -40 to 210 deg F |
| Off Set Point | Field Adjustable |
| Range | 500 to 5,000 psi |
| DC Contact Rating | 3A @ 28V DC Inductive, 5A @ 28V DC Resistive |
| NEMA Rating | 6 |
| Series | A-Series |
| Pressure Connection Type | 7/16-20" SAE Male |
| Pressure - Maximum | 5,000 psi |
| Resistance Properties | Watertight |
| NEMA Enclosure Rating | 6 |
| Compatible Media | Compressed Air, Liquid |
| Pressure - Minimum | 500 psi |
| Overall Width | 1.13 in |
| Adjustable Range Type | Field Adjustable |
| Actuator Style | Piston |
| Operating Temperature - Minimum | -40 deg F |
| Set Point - Maximum | 5,000 psi |
| Electrical Design Output | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Operating Temperature - Maximum | 212 deg F |
| Overall Height | 3.13 in |
| Set Point - Minimum | 750 psi |
| Package Quantity | 1 |
