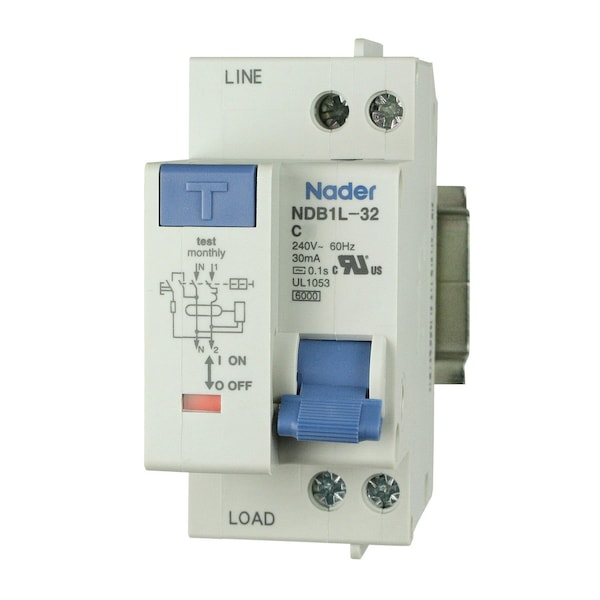

Circuit Breaker, NDB1L-32C Series, 32A, 2 Pole, 120V AC, 4.5kA, C Curve
| Item | Circuit Breaker |
|---|---|
| Series | NDB1L-32C |
| Amps | 32A |
| Number of Poles | 2 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 4.5kA |
| Instantaneous Trip | Instantaneous |
| Terminal Connection | Screw Clamp |
| Width | 36 mm |
| Depth | 69 mm |
| Height | 78 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | C |
| Package Quantity | 1 |
