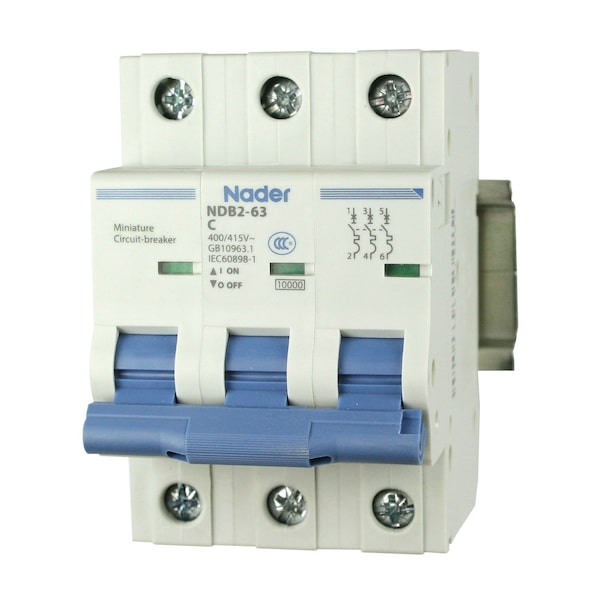

Miniature Circuit Breaker, NDB2 Series, 20A, 3 Pole, 480V AC, 10kA, C Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | NDB2 |
| Amps | 20A |
| Number of Poles | 3 |
| AC Voltage Rating | 480V AC |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Instantaneous |
| Terminal Connection | Screw Clamp |
| Width | 52.8 mm |
| Depth | 60.1 mm |
| Height | 81.5 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | C |
| Package Quantity | 1 |
