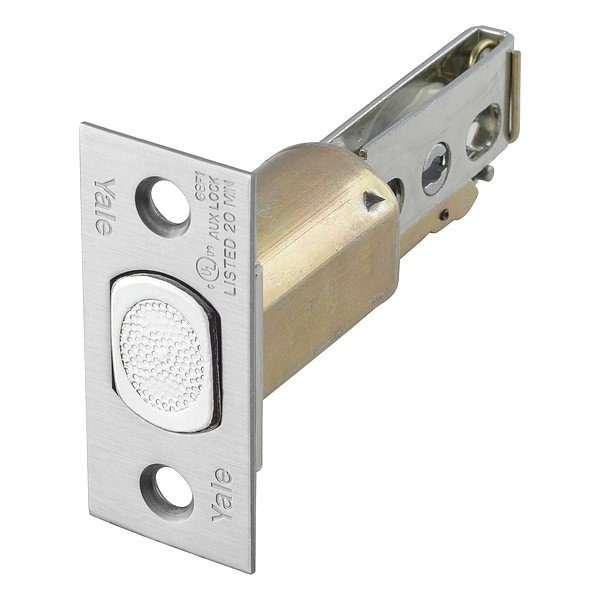

Deadbolt, Cylindrical, Satin Chrome Finish
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Commercial, Industrial, Healthcare, Multi-Family |
| Lockset Grade | 2 |
| Series | 200 |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Standards | ANSI/BHMA A156.36, UL Listed, ULC Listed |
| ADA Compliant | Yes |
| Backset | 2-3/8 in |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 2 |
| Ligature Resistant | No |
| Item | Deadbolt Lock |
| Throw Length | 1 in |
| Mortise/Cylindrical | Cylindrical |
| Application | Commercial |
| Material | Steel |
| Number of Pins | 6 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Inside | Thumb Turn |
| ANSI Grade | 1 |
| Cylinder Core Type | Not Applicable |
| Locking/Unlocking Access - Outside | Not Lockable |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Includes Core | Core Not Included |
| Door Thickness - Maximum | 1-3/8 in |
| Strike Plate Height | 2-3/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Message | Not Applicable |
| Strike Plate Width | 1-1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
