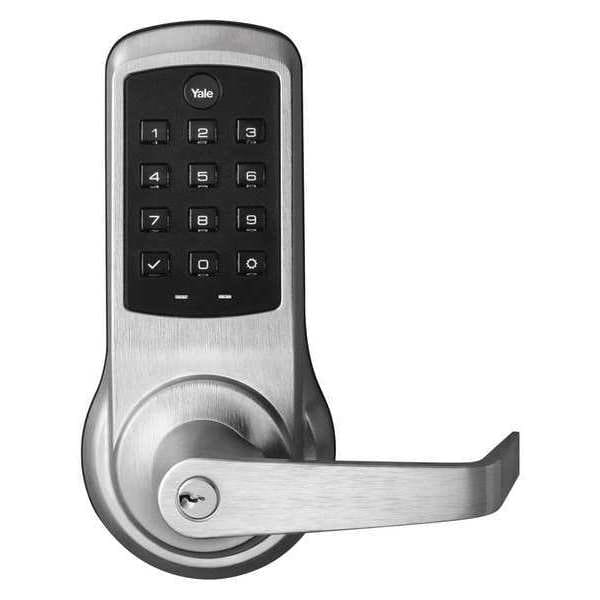

Electronic Keyless Lock, Push Button
| Item | Electronic Keyless Lock |
|---|---|
| Series | NTB600 |
| Handle Type | Lever |
| Max. User Codes | 500 |
| Door Thickness | 1-3/4 in |
| Function | Entry with Key Override |
| Access Method | Keypad |
| Case Material | Metal |
| For Use With | Access to Airport Aprons, Management Offices, Restrooms, Staff Lounges, Storage Closets |
| Mounting Style | Cylindrical |
| Lock Material | Metal |
| Product Type | Electronic Keyless Lock |
| Number of Keys | 2 |
| Includes | (4) AA Batteries, 9V Battery, Handle Removal Tool, Hex Wrench, Gasket Seal |
| Outside Width | 3-3/4 in |
| Bolt Throw | 1/2 in |
| ADA Compliant | Yes |
| Finish | Satin Chrome |
| Outside Height | 8-1/8 in |
| Standards | ANSI/BHMA Grade 1, ISO 9001 |
| Operating Temp. Range | -40 to 140 deg F |
| Event Audit Trail | No |
| Hand | Nonhanded |
| Network Interface | None |
| Max. Proximity Range | At Lock |
| Inside Width | 3-3/4 in |
| Key Override Options | Mechanical |
| Battery Life | 20,000 Cycles |
| Inside Height | 8-1/8 in |
| Power Source | AA Batteries |
| Timed Entry Allowance | 1 to 180 sec |
| IP Rating | Not Rated |
| Latch Front Size | 2-1/4 in x 1-1/8 in |
| Keypad Material | Hardened Plastic |
| Inside Depth | 3-5/16 in |
| Electrical/Mechanical | Electrical |
| Weather Resistant | Yes |
| Latch Length | 1/2 in |
| Outside Depth | 3-5/16 in |
| Backset | 2 3/4 in |
| Fire Rating | 3 hr |
| Grade | 1 |
| Features | Lockout Mode, Low Battery Indicator, Voice Directed Programming |
| Voltage | 9 V |
| Overall Height | 8 1/8 in |
| Overall Depth | 3-5/16 in |
| Switch Action | Push Button |
| Overall Width | 3 3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Latch Front Width | 1-1/8 in |
| Lockset Handle Type | Lever |
| Door Thickness - Maximum | 1-3/4 in |
| Temperature - Maximum | 140 deg F |
| Compatible Manufacturer Model Number | Not Applicable |
| Includes Hardware | Hardware Included |
| Includes Core | Core Included |
| Hand Orientation | Non-Handed |
| User Codes - Maximum | 500 |
| Lockset Function | Entrance |
| Lockset Material | Metal |
| ANSI Grade | 1 |
| Temperature - Minimum | -40 deg F |
| Event Audit Trails | Not Applicable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Type | Electrical, Mechanical |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Operation Type | Push Button |
| Locking/Unlocking Access - Inside | Not Lockable |
| Door Thickness - Minimum | 1 3/8 in |
| Latch Front Length | 2-1/4 in |
| Failure Mode | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
