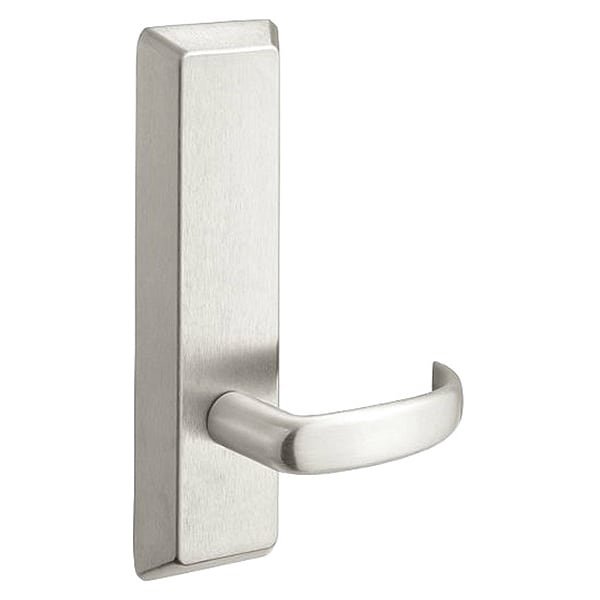

Exit Device Trim, Grade 1,620F Series
| Item | Mechanical Exit Device Trim |
|---|---|
| For Door Thickness | 1 3/4 in |
| Fire Rated | Yes |
| Finish | Stainless Steel |
| Series | 620F |
| Standards | ANSI/BHMA A156.3 |
| Max. Door Width | 48 in |
| Grade | 1 |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Outside Trim Type | Lever |
| Visual Indicator Message | No Message |
| Product Type | Mechanical Exit Device Trim |
| Exit Device Style | Lever |
| Hand Orientation | Non-Handed |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI Grade | 1 |
| Door Thickness - Minimum | 1 3/4 in |
| Door Height - Maximum | 96 in |
| Door Width - Minimum | Not Applicable |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Door Width - Maximum | 48 in |
| Visual Indicator Location | Not Applicable |
| Fire Rating | 3 hr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
