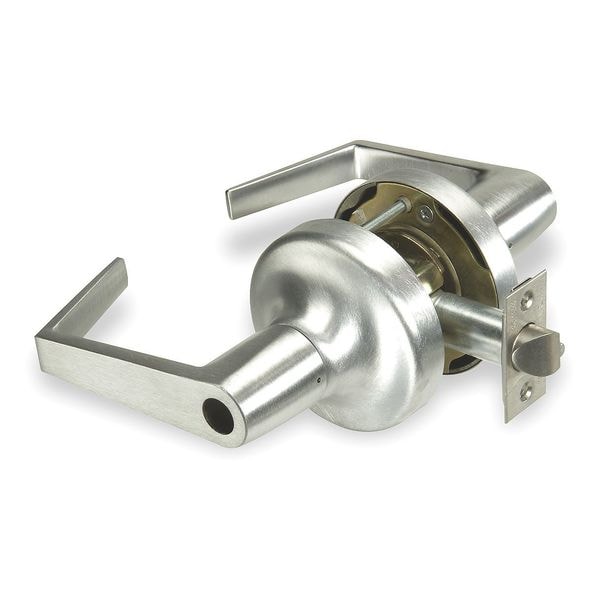

Lever Lockset, Mechanical, Classroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Classroom |
| Lockset Grade | Grade 1 |
| Style | 5400LN Augusta |
| Required Door Thickness | 1-3/4 in to 2-1/4 in |
| Lockset Finish | Dull Chrome |
| Keyway Type | Schlage |
| Key Type | Keyed Different |
| Lockset Fire Rating | 3 hr |
| Backset | 2-3/4 in |
| Mortise/Cylindrical | Cylindrical |
| Ligature Resistant | No |
| Item | Door Lockset |
| Location Type | Commercial |
| Standards | ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203 |
| Includes | Free Wheeling Lever |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Strike Type | Curved Lip |
| Handle Material | Heavy Gauge Steel |
| Series | 5400LN |
| Lockset Performance Strength | Heavy Duty |
| ADA Compliant | Yes |
| Fire Rated | 3 hr. |
| Number of Pins | 6 |
| Grade | 1 |
| Finish | Dull Chrome |
| Features | Adjustable Rose |
| Keying | Keyed Different |
| Number of Keys | 2 |
| Cylinder Core Type | Large Format Interchangeable Core Cylinder |
| Voltage | Not Applicable |
| Type | Heavy Duty |
| Visual Indicator Message | No Message |
| Material | Steel |
| For Door Thickness | 1-3/4 to 2-1/4" |
| Function | Classroom |
| Strike | 1-1/4 x 4-7/8" |
| Ligature-Resistant | Not Ligature-Resistant |
| Includes Core | Core Included |
| Strike Plate Width | 1-1/4 in |
| Locking/Unlocking Access - Inside | Not Lockable |
| Strike Plate Lip Length | 1-1/4 in |
| Lockset Style | Augusta |
| Performance Grade | 1 |
| ANSI Grade | 1 |
| Locking/Unlocking Access - Outside | Keyway |
| Hand Orientation | Non-Handed |
| Fire Rating | 3 hr |
| Application | Commercial, Industrial |
| Trim Plate Shape | Round |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Knob/Handle Material | Steel |
| Door Thickness - Minimum | 1-3/8 in |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Maximum | 2-1/4 in |
| Visual Indicator Location | Not Applicable |
| Lockset Function ANSI Code | F84 |
| Lockset Type | Mechanical |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
