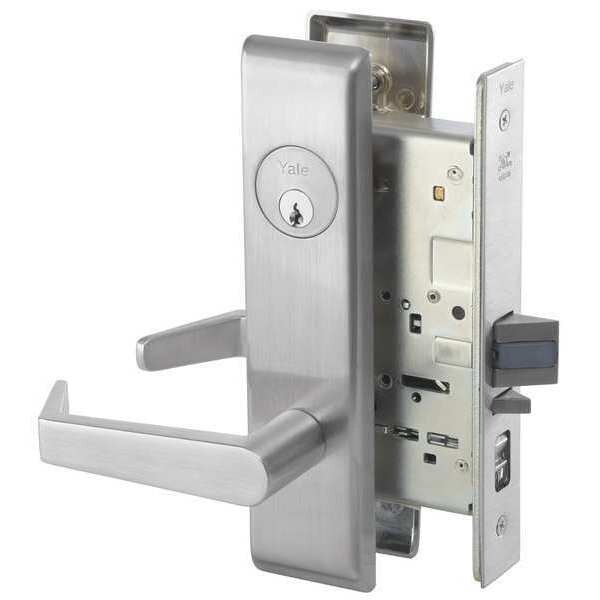

Lever Lockset, Mechanical, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Entrance |
| Lockset Grade | Grade 1 |
| Style | 8800FL Augusta |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Dull Chrome |
| Keyway Type | Yale Para |
| Key Type | Keyed Different |
| ADA Compliant | Yes |
| Includes | Escutcheon Plate |
| Mortise/Cylindrical | Mortise |
| Strike Type | Curved Lip |
| Series | 8800FL |
| Location Type | Commercial |
| Ligature Resistant | No |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Number of Keys | 2 |
| Standards | ANSI/BHMA A117.1, ANSI/BHMA A156.13, CAL FIRE, 3775-0257:0113, EPD, UL and cUL Listed |
| Lockset Fire Rating | 3 hr |
| Backset | 2-3/4 in |
| Item | Door Lockset |
| Finish | Dull Chrome, Microshield Antimicrobial |
| Grade | 1 |
| Keying | Keyed Different |
| Fire Rated | 3 hr. |
| Voltage | Not Applicable |
| Cylinder Core Type | Conventional Core Cylinder |
| Type | Escutcheon Plate |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Visual Indicator Message | No Message |
| Material | Brass Handle, Heavy Gauge Steel Body |
| For Door Thickness | 1-3/4 to 3-1/4" |
| Pins | 6 |
| Case Material | Brass, Steel, Zinc |
| Function | Entrance, Office |
| Handle Type | Lever |
| Strike | 1-1/4 x 4-7/8" |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Fire Rating | 3 hr |
| Visual Indicator Location | Not Applicable |
| Locking/Unlocking Access - Outside | Keyway |
| Includes Core | Core Included |
| Lockset Type | Mechanical |
| Strike Plate Width | 1-1/4 in |
| Door Thickness - Maximum | 3-1/4 in |
| Hand Orientation | Non-Handed |
| Application | Commercial |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Style | Augusta |
| ANSI Grade | 1 |
| Trim Plate Shape | Rectangular |
| Locking/Unlocking Access - Inside | Not Lockable |
| Lockset Function ANSI Code | F04 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Ligature-Resistant | Not Ligature-Resistant |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
