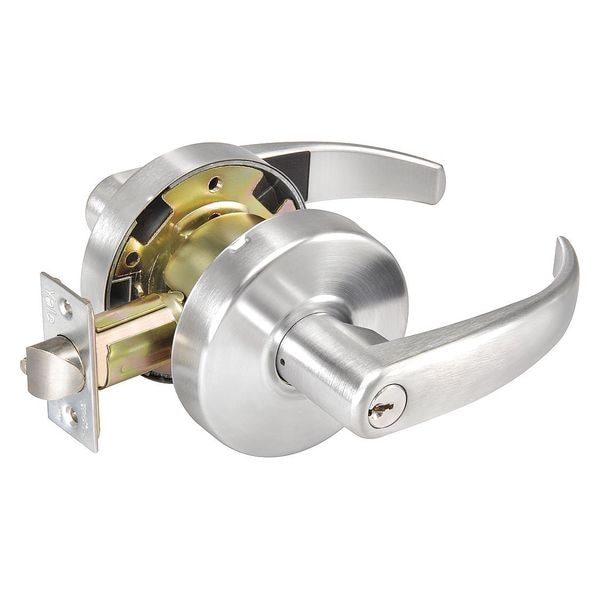

Lever Lockset, Mechanical, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 2 |
| Style | 4600LN Pacific Beach |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Lockset Finish | Dull Chrome |
| Keyway Type | Yale Para |
| Key Type | Keyed Different |
| Location Type | Commercial |
| ADA Compliant | Yes |
| Lockset Performance Strength | Medium Duty |
| Includes | Free Wheeling Lever |
| Number of Pins | 6 |
| Ligature Resistant | No |
| Lockset Fire Rating | 3 hr |
| For Use With | Metal Doors with Metal Frames |
| Handle Material | Heavy Gauge Steel |
| Series | 4600LN |
| Item | Door Lockset |
| Strike Type | Curved Lip |
| Mortise/Cylindrical | Cylindrical |
| Number of Keys | 2 |
| Strike Dim. | 2-1/4 in x 4-7/8 in |
| Standards | ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203 |
| Backset | 2-3/4 in |
| Finish | Dull Chrome |
| Grade | 2 |
| Fire Rated | 3 hr. |
| Keying | Keyed Different |
| Voltage | Not Applicable |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Visual Indicator Message | No Message |
| Material | Steel |
| Pins | 6 |
| Function | Storeroom |
| For Door Thickness | 1-3/8 to 1-3/4" |
| Strike | 2-1/4 x 4-7/8" |
| Knob/Handle Material | Steel |
| ANSI Grade | 2 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Width | 1-1/4 in |
| Lockset Type | Mechanical |
| Application | Commercial |
| Lockset Style | Pacific Beach |
| Strike Plate Lip Length | 1-1/4 in |
| Hand Orientation | Non-Handed |
| Visual Indicator Location | Not Applicable |
| Performance Grade | 2 |
| Door Thickness - Maximum | 1-3/4 in |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Function ANSI Code | F86 |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Outside | Keyway |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Trim Plate Shape | Round |
| Locking/Unlocking Access - Inside | Not Lockable |
| Strike Plate Height | 4-7/8 in |
| Fire Rating | 3 hr |
| Includes Core | Core Included |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
