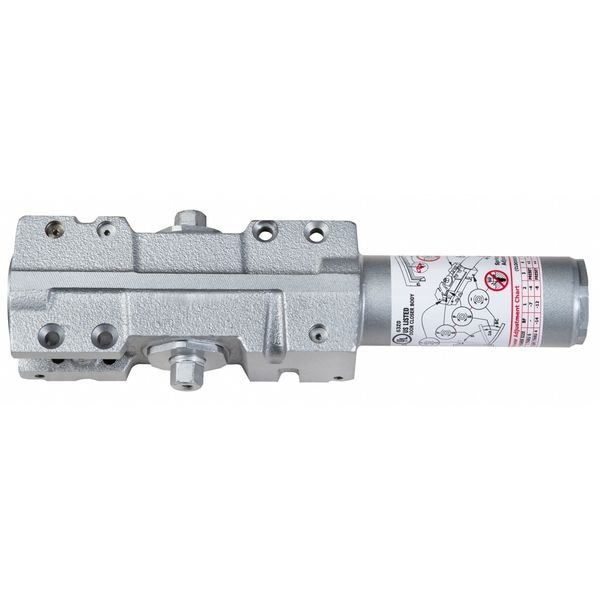

Manual, Hydraulic, Yale 5800, Door Closer, Heavy Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Performance | Heavy Duty |
| Closer Series | Yale 5800 |
| Closer Type | Hold Open |
| Color | Gray |
| Finish | Aluminum Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Housing Length | 12-1/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Standards | ANSI/BHMA A156.4 Grade 1; UL10c Listed; CAN / ULC S104 Listed; Americans with Disabilities Act (ADA); ANSI/BHMA A117.1 |
| Arm Material | Cast Iron |
| Spring Size | Adjustable 1 to 6 |
| Arm Type | Parallel, Regular |
| Projection from Wall | 2-1/4 in |
| Includes | Self Drilling Screws |
| Ligature Resistant | No |
| ADA Compliant | Yes |
| Category Type | Parallel Arm |
| Features | Adjustments for Backcheck, Closing and Latch Speed |
| Type | Interior/Exterior Institutional |
| Series | 2800 |
| Door Handing | Non-Handed |
| Mounting Style | Universal, Top Jamb and Standard |
| Hand | NH |
| Length Between Mounting Holes | 5 in |
| Product Type | Door Closer |
| Spring Type | Adjustable |
| Ligature-Resistant | Not Ligature-Resistant |
| Performance Grade | 1 |
| Spring Size - Maximum | 6 |
| Door Opening - Maximum | 110 deg |
| Fire Rating | 90 min |
| Compatible Manufacturer Model Number | Not Applicable |
| Door Opening - Minimum | 85 deg |
| Compatible Brand | ACCENTRA |
| Spring Size - Minimum | 1 |
| Interior/Exterior Use | Interior, Exterior |
| ANSI/BHMA Finish | Aluminum Painted |
| Stop Type | Spring |
| Projection | 2-1/4 in |
| Closer Cycles | 25,000,000 |
| Height Between Mounting Holes | 2-1/4 in |
| Operation Style | Manual |
| Compatible Series | Not Applicable |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
