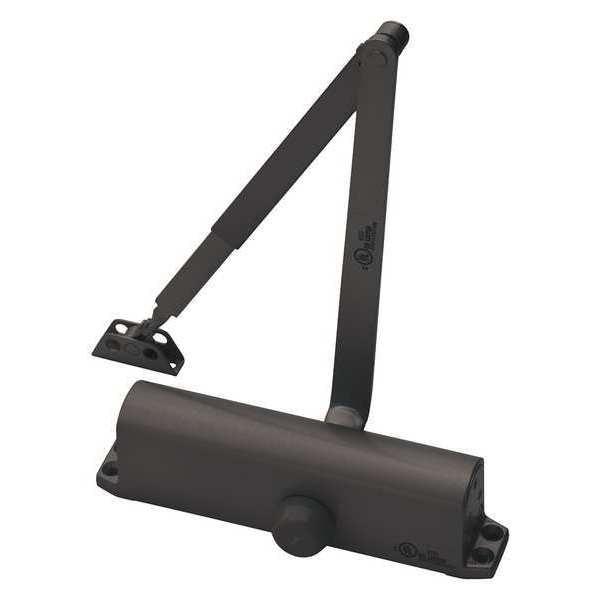

Manual, Hydraulic, Yale YDC200, Door Closer, Heavy Duty Interior and Exterior, Dark Bronze
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Performance | Heavy Duty |
| Closer Series | Yale YDC200 |
| Closer Type | Non Hold Open |
| Color | Dark Bronze |
| Finish | Dark Bronze Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-5/8 in |
| Housing Height | 1-3/4 in |
| Housing Length | 9-1/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Aluminum |
| Interior Door Width | 48 in |
| Includes | Mounting hardware |
| Arm Material | Steel |
| Mounting Hardware | Included |
| ADA Compliant | No |
| Ligature Resistant | No |
| Exterior Door Width | 48 in |
| Max. Door Opening | 120 Degrees to 180 Degrees |
| Spring Size | 4 |
| Arm Type | Parallel, Regular |
| Standards | ANSI/BHMA Grade 1; UL/cUL Listed |
| Projection from Wall | 2-5/8 in |
| Category Type | Parallel Arm |
| Features | Cast Aluminum Body and Threaded Adjustable Arm, Independent Latch, Sweep and Backcheck Intensity Valves, Rack and Pinion Design |
| Series | YDC200 |
| Product Type | Door Closer |
| ANSI/BHMA Finish | Painted |
| Interior/Exterior Use | Exterior |
| Compatible Series | Not Applicable |
| Interior Door Width - Maximum | 48 in |
| Spring Size - Minimum | 1 |
| Ligature-Resistant | Not Ligature-Resistant |
| Exterior Door Width - Maximum | 48 in |
| Includes Hardware | Hardware Included |
| Projection | 2-5/8 in |
| Stop Type | Spring |
| Compatible Manufacturer Model Number | Not Applicable |
| Performance Grade | 1 |
| Spring Type | Adjustable |
| Closer Cycles | 25,000,000 |
| Door Opening - Minimum | 120 deg |
| Compatible Brand | ACCENTRA |
| Spring Size - Maximum | 4 |
| Length Between Mounting Holes | 9-1/16 in |
| Door Opening - Maximum | 180 deg |
| Height Between Mounting Holes | 3/4 in |
| Operation Style | Manual |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
