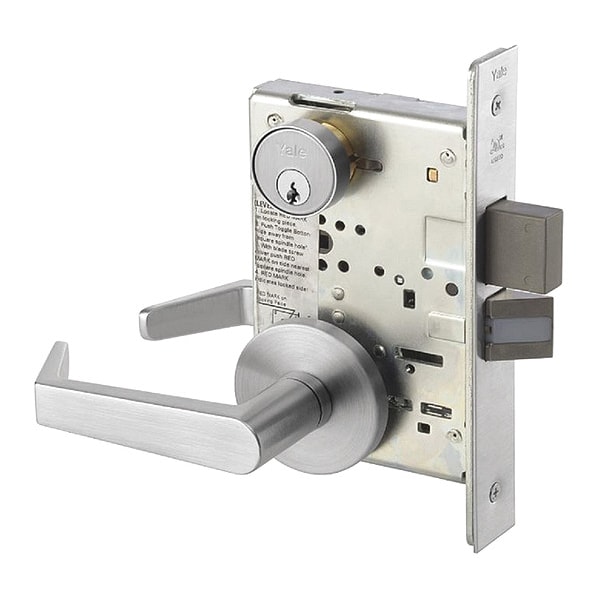

Mortise Lockset, Mechanical, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Entrance |
| Lockset Grade | Grade 1 |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Number of Pins | 6 |
| ADA Compliant | Yes |
| Voltage | Not Applicable |
| Key Material | Not Applicable |
| Series | Yale(R) 8800 |
| Cylinder Core Type | Conventional Core Cylinder |
| Ligature Resistant | No |
| Mortise/Cylindrical | Mortise |
| Strike Type | Curved Lip |
| Backset | 2-3/4 in |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Standards | ANSI/BHMA A117.1, ANSI/BHMA A156.13, CAL FIRE, 3775-0257:0113, EPD, UL and cUL Listed |
| Number of Keys | 2 |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Door Thickness - Maximum | 3-1/4 in |
| Fire Rating | 3 hr |
| Lockset Style | Augusta |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Hand Orientation | Right-Handed |
| Includes Core | Core Not Included |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI Grade | 1 |
| Lockset Function ANSI Code | F20 |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Type | Mechanical |
| Ligature-Resistant | Not Ligature-Resistant |
| Application | Commercial |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Performance Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt, Dead Bolt |
| Trim Plate Shape | Rectangular |
| Visual Indicator Message | No Message |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
