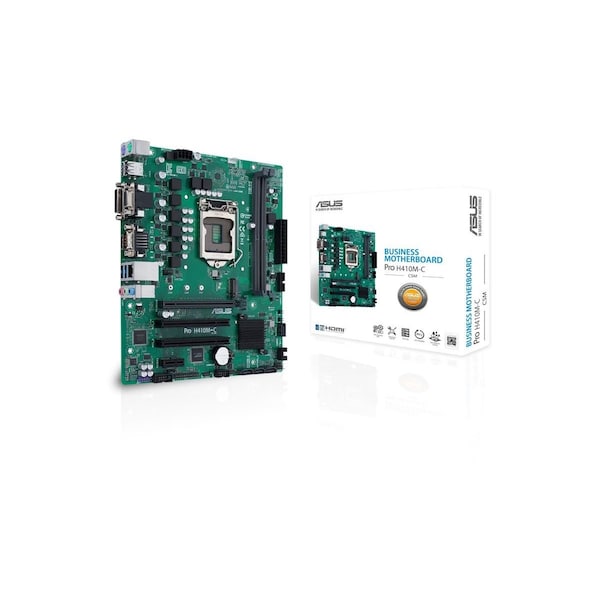

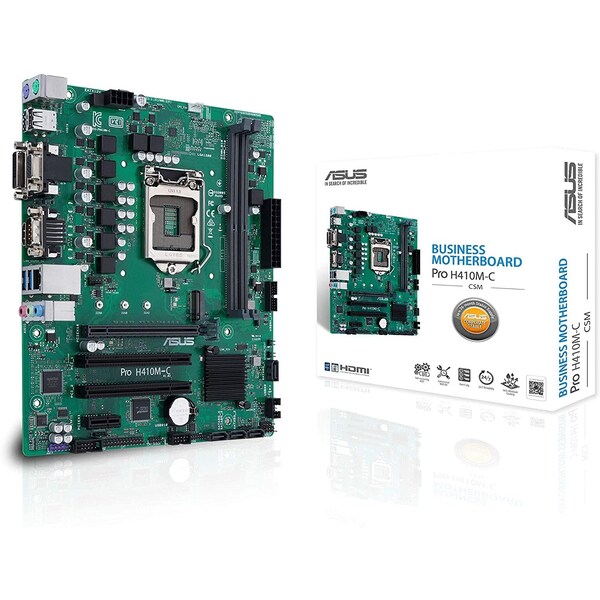

PRO H410M-C/CSM LGA1200 (Intel 10th Gen) Micro ATX Commercial Motherboard (M.2, Intel LAN, DVI,
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Desktop Motherboard |
| DVI | Yes |
| Package Contents | PRO H410M-C/CSM Desktop Motherboard, User's Manual, 1 x ACC Express Activation Key Card, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD |
| Total Number of USB Ports | 4 |
| Number of SATA Interfaces | 4 |
| Controller Type | Serial ATA, 600 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2133 MHz, 2933 MHz, 2400 MHz, 2666 MHz, 2800 MHz |
| Width | 9.6 in |
| Number of USB 3.2 Ports | 2 |
| VGA | Yes |
| Number of Onboard USB 3.2 Ports | 2 |
| Processor Supported | Celeron, Core i7, Core i5, Core i9, Pentium Gold, Core i3 |
| Chipset Model | H410 |
| Total Number of PCI Express Slots | 4 |
| Number of Network (RJ-45) Ports | 1 |
| HDMI | Yes |
| Number of Memory Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Environmentally Friendly | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Processor Supported | 1 |
| Onboard Video | CPU Dependent Video |
| Total Number of Expansion Slots | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of PCI Express x16 Slots | 1 |
| Gigabit Ethernet | Yes |
| Audio Channels | 7.1 |
| Memory Technology | DDR4 SDRAM |
| Number of Onboard USB 2.0 Ports | 4 |
| Processor Socket | Socket LGA-1200 |
| Number of M.2 Interfaces | 1 |
| Series | PRO |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
