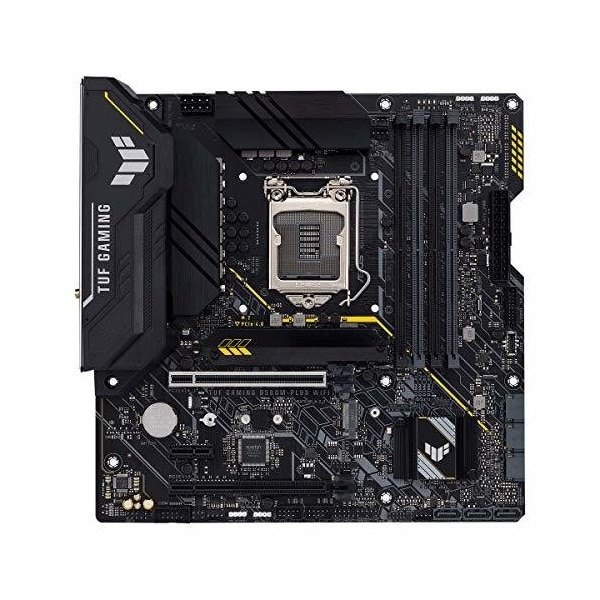

TUF Gaming B560M-PLUS WiFi LGA1200 (Intel11th/10th Gen) Micro ATX Gaming Motherboard (PCIe 4.0,
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Desktop Motherboard |
| Number of USB Ports | 9 |
| Features | Environmentally Friendly |
| Number of PCI Express Slots | 3 |
| Number of USB 2.0 Ports | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Bluetooth | Yes |
| Memory Technology | DDR4 SDRAM |
| Onboard Video | CPU Dependent Video |
| Wireless LAN | Yes |
| DisplayPort | Yes |
| Number of Expansion Slots | 3 |
| Controller Type | Serial ATA, 600 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of PCI Express x16 Slots | 2 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
| S/PDIF | Yes |
| Intel Optane Memory Ready | Yes |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of PCI Express x1 Slots | 1 |
| Max. Memory Supported | 128 GB |
| Number of Memory Slots | 4 |
| Brand Compatibility | Intel |
| Memory Speed Supported | 2133 MHz, 4266 MHz, 5000 MHz, 3200 MHz, 4600 MHz, 4400 MHz, 3600 MHz, 2800 MHz, 3333 MHz, 2933 MHz, 4000 MHz, 2400 MHz, 4800 MHz, 3733 MHz, 2666 MHz, 3466 MHz |
| Processor Socket | Socket LGA-1200 |
| Number of M.2 Interfaces | 2 |
| Includes | (2) SATA 6Gb/s Cables, (1) ASUS Wi-Fi Moving Antennas, (1) M.2 Rubber Package(s), (1) M.2 SSD Screw Package(s), (1) TUF Gaming Sticker, (1) Support DVD, (1) TUF Certification Card, (1) User Manual. |
| Processor Supported | Pentium Gold, Core i3, Core i7, Celeron, Core i9, Core i5 |
| Number of Onboard USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of SATA Interfaces | 6 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Processor Supported | 1 |
| Package Contents | GAMING B560M-PLUS WIFI Desktop Motherboard, 2 x SATA 6Gb/s Cables, 1 x ASUS Wi-Fi Moving Antennas, 1 x M.2 Rubber Package(s), 1 x M.2 SSD Screw Package(s), 1 x TUF Gaming Sticker, 1 x Support DVD, 1 x TUF Certification Card, 1 x User Manual |
| Chipset Model | B560 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
