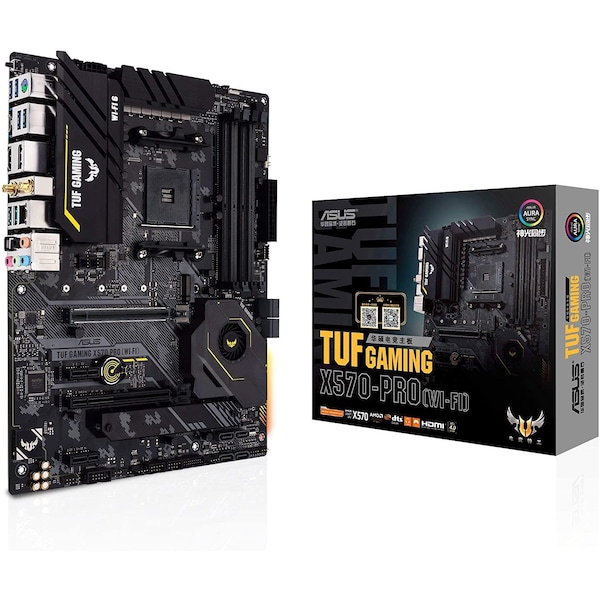

TUF Gaming X570-PRO (WiFi 6) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard (PCIe 4.0, 2.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Desktop Motherboard |
| Bluetooth | Yes |
| Number of Expansion Slots | 4 |
| Number of Memory Slots | 4 |
| Controller Type | Serial ATA, 600 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Number of Onboard USB 3.2 Ports | 3 |
| HDMI | Yes |
| Memory Speed Supported | 3600 MHz, 3000 MHz, 2800 MHz, 3200 MHz, 3866 MHz, 2666 MHz, 2933 MHz, 4000 MHz, 3466 MHz, 4133 MHz, 5100 MHz, 3733 MHz, 4400 MHz, 4800 MHz, 4266 MHz, 2133 MHz, 4600 MHz, 3400 MHz, 2400 MHz |
| Number of USB 3.2 Ports | 7 |
| Number of SATA Interfaces | 8 |
| Number of PCI Express x1 Slots | 2 |
| Memory Form Factor | DIMM, UDIMM |
| Number of PCI Express x16 Slots | 2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Audio Channels | 7.1 |
| Total Processor Supported | 1 |
| RAID Supported | Yes |
| Number of M.2 Interfaces | 2 |
| Onboard Video | CPU Dependent Video |
| Wireless LAN | Yes |
| Multi-GPU Supported | CrossFireX |
| DisplayPort | Yes |
| Number of USB Ports | 7 |
| RAID Levels | 0, 1, 10 |
| S/PDIF | Yes |
| Processor Socket | Socket AM4 |
| Number of Onboard USB Ports | 7 |
| Processor Supported | Ryzen 3 PRO, Ryzen 7, Athlon, Ryzen 9, Ryzen 5, Athlon PRO, Ryzen 3, Ryzen 7 PRO |
| Max. Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| 2.5Gigabit Ethernet | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Includes | User's Manual, I/O Shield, (2) SATA 6Gb/s Cable(s), (1) M.2 Screw Package, (1) Supporting DVD, (1) ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac compliant), (1) TUF GAMING Sticker, (1) TUF Certification Card(s), (1) M.2 Rubber Package(s). |
| Features | Environmentally Friendly |
| Brand Compatibility | AMD |
| Number of PCI Express Slots | 4 |
| Chipset Model | X570 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
