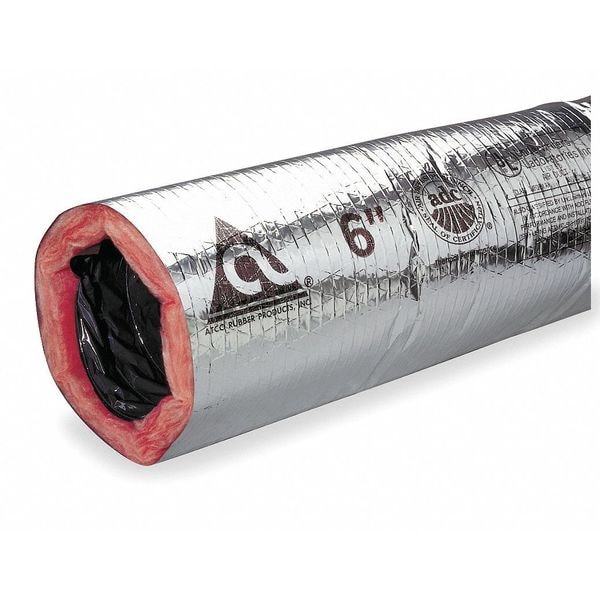

Insulated Flexible Duct, 180F, 5000 fpm
| Flexible Duct Inside Dia. | 12 in |
|---|---|
| Flexible Duct Item | Insulated Flexible Duct |
| Flexible Duct Length | 25 ft |
| Flexible Duct Wall Thickness | 1-1/4 in |
| Insulation Value | R 4.2 |
| Material | Polyester |
| UPC Number | 30 |
| Vapor Transmission | 0.05 % |
| For Use With | Heating and Cooling Systems |
| Max. Pressure | 6 in WC |
| Max. Air Flow | 5,000 fpm |
| Standards | California State Fire Marshal, City of Chicago, Dade County, Florida, cUL Listed, HUD, IMC, IRC, New York City, NFPA 90A & B, City of San Francisco, UL Listed, UMC |
| Item | Flexible Duct |
| Features | Air Tight Inner Core, Encapsulated Wire Helix, Smooth Inner Core, Thick Blanket of Fiberglass Insulation, Tough Reinforced Metallized Polyester Jacket, Light Weight Compact Carton |
| Low Temp. Deg. | -20 Degrees F |
| Fire Rating | 25 Max (Flame Spread), 50 Max (Smoke Developed) |
| Max. Temp. | 180 Degrees F |
| Color | Silver |
| Jacket Material | Metallized Polyester |
| Interior Surface Texture | Smooth |
| Wall Thickness | 1-1/4 in |
| Environment Type | Indoor |
| System of Measurement | Inch |
| Maximum Temperature Rating | 180 deg F |
| Insulation Material | Fiberglass |
| Flexibility | Flexible |
| Duct Material | Fiberglass |
| Product Type | Insulated Flexible Duct |
| End Type | Plain |
| Maximum Pressure Rating | 6 in wc |
| Minimum Temperature Rating | -20 Degrees F |
| Maximum Continuous Length | 100 ft |
| Maximum Air Speed | 5,000 fpm |
| For Nominal Duct Diameter | 12 in |
| Inside Diameter | 12 in |
| Overall Length | 25 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
