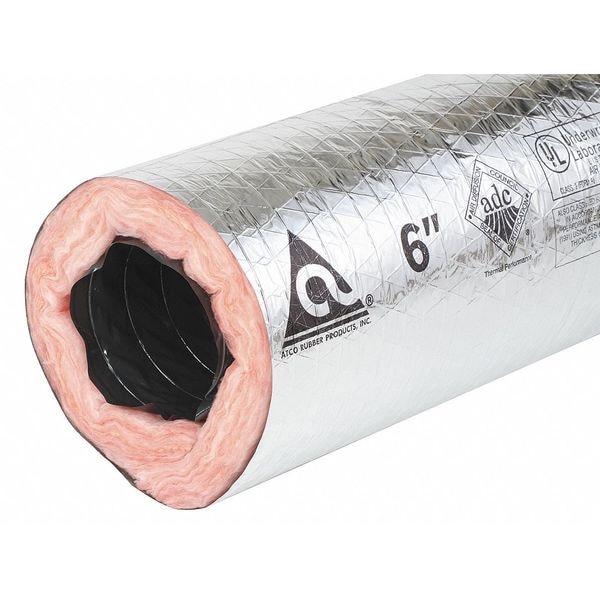

Insulated Flexible Duct, 6"WC, 5000 fpm
| Flexible Duct Inside Dia. | 6 in |
|---|---|
| Flexible Duct Item | Insulated Flexible Duct |
| Flexible Duct Length | 25 ft |
| Flexible Duct Wall Thickness | 2-1/2 in |
| Insulation Value | R 8 |
| Material | Polyester |
| UPC Number | 31 |
| Vapor Transmission | 0.05 % |
| For Use With | Low Pressure Air Moving Systems |
| Max. Pressure | 6 in WC |
| Max. Air Flow | 5,000 fpm |
| Standards | California State Fire Marshal, City of Chicago, Dade County, Florida, cUL Listed, HUD, IMC, IRC, New York City, NFPA 90A & B, City of San Francisco, UL Listed, UMC |
| Item | Flexible Duct |
| Compressed Size | 38 in |
| Features | Double Ply Vapor Barrier with Tri Directional Reinforcements |
| Low Temp. Deg. | -20F |
| Fire Rating | 25 Max (Flame Spread), 50 Max (Smoke Developed) |
| Max. Temp. | 140 F |
| Color | Silver |
| Jacket Material | Metallized Polyester |
| Wall Thickness | 2-1/2 in |
| Maximum Air Speed | 5,000 fpm |
| Maximum Pressure Rating | 6 in wc |
| Environment Type | Indoor |
| Maximum Continuous Length | 100 ft |
| Product Type | Insulated Flexible Duct |
| Interior Surface Texture | Smooth |
| System of Measurement | Inch |
| Compressed Length | 38 in |
| End Type | Plain |
| Overall Length | 25 ft |
| For Nominal Duct Diameter | 6 in |
| Flexibility | Flexible |
| Minimum Temperature Rating | -20 Degrees F |
| Insulation Material | Fiberglass |
| Inside Diameter | 6 in |
| Maximum Temperature Rating | 140 deg F |
| Duct Material | Fiberglass |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
