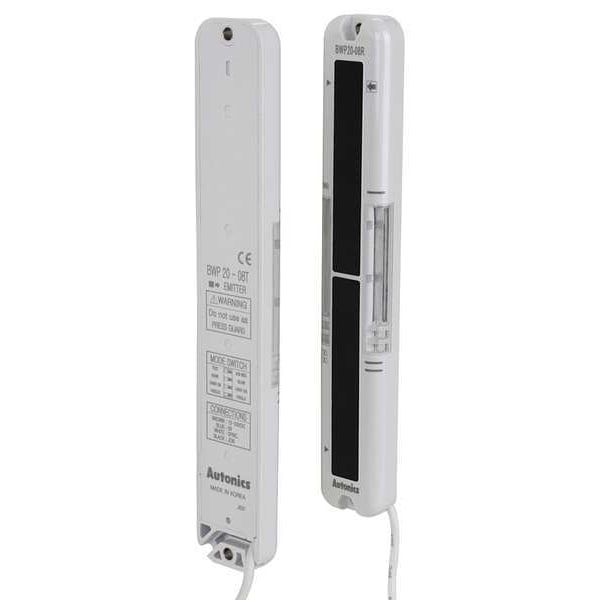

Sensor de área, NPN, plástico, 20mm, 12 rayos.
| Item | Photoelectric Area Sensor |
|---|---|
| Housing Material | Plastic |
| Circuit Type | NPN Open Collector |
| IP Rating | 40 |
| Beam Spacing | 20 mm |
| Sensing Range | 0.10 to 5.00m |
| Width | 28.6 mm |
| Number of Beams | 12 |
| Depth | 22.6 mm |
| Sensing Height | 270 mm |
| Max. Load Current | 100 mA |
| Cable Length | 3 m |
| Operating Temp. Range | -20 to 60 deg C |
| Cable Connection | 4 Bare (Wires) |
| Output Mode | Light-On |
| Includes | Emitter, Receiver and Instructions |
| Max. Load Voltage | 30V DC |
| Response Time | 6 msec |
| Current Consumption | 80 mA |
| Light Source | Infrared LED |
| Power Source | 12 to 24V DC |
| Min. Target Size | Opaque Material 30mm |
| Overall Height | 290 mm |
