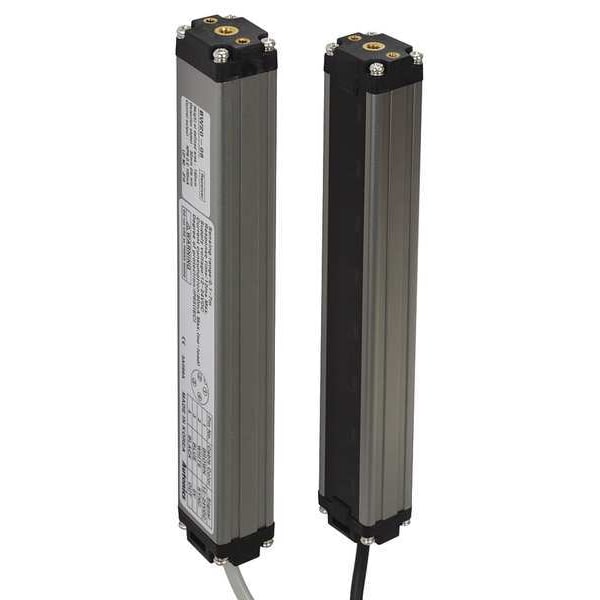

Sensor de área, PNP, metálico, 20mm, 40 haces.
| Item | Photoelectric Area Sensor |
|---|---|
| Housing Material | ALuminum |
| IP Rating | 65 |
| Circuit Type | PNP Open Collector |
| Beam Spacing | 20 mm |
| Width | 28.6 mm |
| Sensing Range | 0.10 to 7.00m |
| Number of Beams | 40 |
| Depth | 22.6 mm |
| Max. Load Current | 100 mA |
| Sensing Height | 800 mm |
| Cable Connection | 4 Pin M12 |
| Includes | Emitter, Receiver and Instructions |
| Response Time | 12 msec |
| Power Source | 12 to 24V DC |
| Current Consumption | 80 mA |
| Light Source | Infrared LED |
| Overall Height | 820 mm |
| Cable Length | 300 mm |
| Operating Temp. Range | -20 to 60 deg C |
| Max. Load Voltage | 30V DC |
| Output Mode | Light-On |
| Min. Target Size | Opaque Material 30mm |
| Shop By | Closeouts |
| Package Quantity | 1 |
