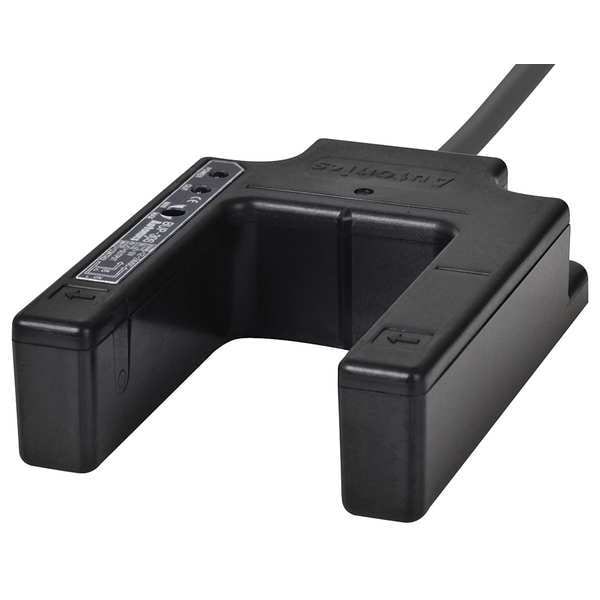

Sensor fotoeléctrico, tipo U-Slot, de barrera.
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 66 |
| Sensing Method - Rectangular Photoelectric Sensor | Through Beam |
| Circuit Type | PNP |
| Power Requirement - Rectangular Photoelectric Sensor | 12 to 24 V DC |
| Width | 2.33 in |
| Output Circuit Type - Rectangular Photoelectric Sensor | PNP |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Depth | 20 mm |
| Max. Load Current | 50 mA |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 30 mm |
| Operating Frequency | 55 Hz |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Electrical Connection | 2m cable |
| Height - Rectangular Photoelectric Sensor | 59 mm |
| Sensing Method | Through Beam |
| Width - Rectangular Photoelectric Sensor | 59 mm |
| Standards | CE Approval |
| Operation Mode | Dark On, Selectable Light On |
| Operating Temp. Range | -10 to 60 deg C |
| Length | 2.33 in |
| Response Time | 1 msec |
| Power Requirement | 12 to 24VDC |
| Body Material | Metal |
| NEMA Rating | Not Rated |
| Light Source | Infrared LED |
| Min. Object Size | 1.5 mm dia (Opaque) |
| Max. Sensing Distance | 30 mm |
| Depth - Rectangular Photoelectric Sensor | 20 mm |
| Shape | U-Slot |
| Package Quantity | 1 |
