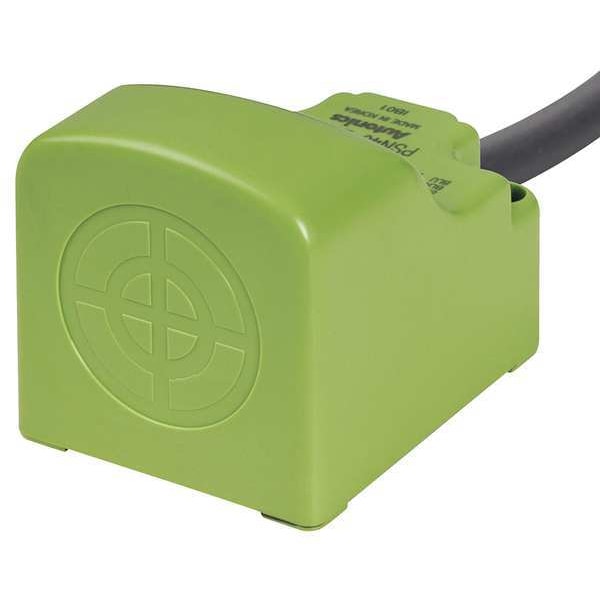

Sensor de proximidad rectangular, 12 a 24VDC, NPN.
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | NPN |
| Output Mode | NO |
| Length | 47 mm |
| Width | 40 mm |
| Max. Detecting Distance | 20 mm |
| Depth | 40 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Case Material | Heat Resistant ABS |
| Proximity Sensor Operating Frequency | 100 Hz |
| Operating Temp. Range | -13 to 158 deg F |
| Max. Current Load | 200 mA |
| IP Rating | 67 |
| Description/Special Features | Square |
| Standards | CE certified |
| Length (Straight Wireway) | 47 mm |
| Package Quantity | 1 |
