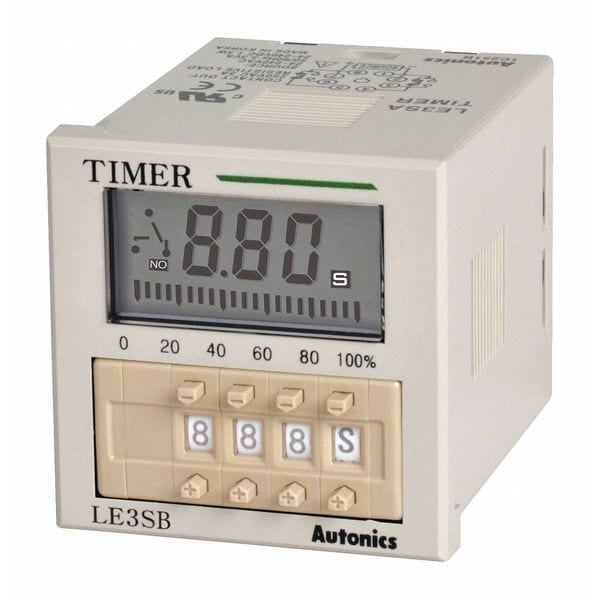

Retardo de tiempo Rlé, 24 a 240 VCA / 24 a 240 VCD.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Flicker, Integration Time, Interval Delay, Off Delay, On Delay, One Shot Out, One Shot Out Flicker, Signal Start Flicker Interval, Signal Start On Delay |
| Coil Volts | 24 to 240V AC/24 to 240V DC |
| AC Contact Rating - Relay | 3A @ 250V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Mounting - Relay | Plug In, Through Panel |
| Adjustment Method - Timer | Push Button |
| Contact Form - Relay | DPDT, SPDT |
| Min. Time Setting - Timer | 0.01 sec |
| Power Consumption - Relay | 2 W, 4.3 VA |
| Max. Time Setting - Timer | 416 days 6 hr |
| Pins | 8 |
| Electrical Connection | Socket |
| Hz | 50/60 |
| Coil Rating | 5 VA |
| Function | On Delay, Interval Delay, Signal Start on Delay,Flicker, Signal Start Flicker Interval, One Shot Out Flicker, OFF Delay, One Shot Out, Integration Time |
| Body Depth - Relay | 1.89 in |
| Contact Amp Rating (Resistive) | 3 A |
| Body Width - Relay | 1.89 in |
| Status Indicator | LCD |
| Number of Functions | 9 |
| Overall Height - Relay | 2.91 in |
| Adjustment Method | Push Button |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Body Height - Relay | 2.09 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Standards | CE Certified, cULus Listed |
| Operating Functions | 1, 2, 4, 5, 9, + 4 Others |
| Contact Form | SPDT |
| Contact Material | Silver Alloy |
| Base Type | Octal |
| Socket Code | A |
| Min. Time Setting | 0.01 sec |
| Mounting | plug In, Panel |
| Item | Multi-Function Time Delay Relay |
| Max. Time Setting | 9,990 hr |
| Input Voltage | 24 to 240V AC, 24 to 240V DC |
| Series | LE3S |
| Number of Pins | 8 |
| Body Width | 1.88 in |
| Number of Delay Functions | 1 |
| Minimum Time Setting | 0.01 sec |
| Weight | 3.7 oz |
| Contact Rating (AC) | 3 A @ 250 V |
| Current Rating | 3 A |
| Minimum Operating Temperature | 14 deg F |
| Electrical Operating Durability | 100,000 |
| Body Height | 1.88 in |
| Overall Depth | 2.91 in |
| Frequency | 50/60 Hz |
| Maximum Operating Temperature | 131 deg F |
| Base Shape | Octal |
| Maximum Time Setting | 10 hr |
| Power Consumption | 2 W, 4.3 VA |
| Body Depth | 2.06 in |
| Flat Pin Width | Not Applicable |
| Coil Voltage | 240V AC |
| Delay Function | On Delay |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Style | Panel Door |
| Package Quantity | 1 |
