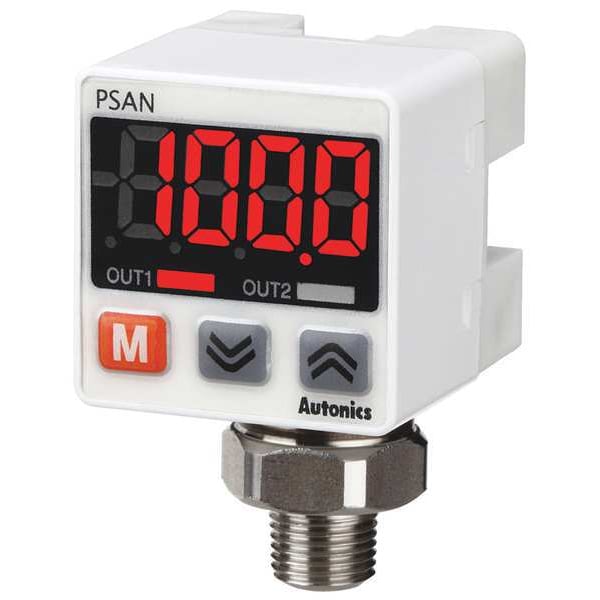

Sensor de presión de aire de vacío, 1 a 5VCC
| Item | Vacuum Air Pressure Sensor |
|---|---|
| Range | -14.7 psi Vac to 0 psi |
| Analog Output | 1 to 5V DC |
| Control Output | PNP |
| On/Off Setting | Programmable |
| Max. Pressure | 29 psi |
| Power Required | 12 to 24V DC |
| Process Connection | 1/8 in NPT |
| Electrical Connection | Cable Connector With Wire Leads |
| Display | 4 Digit LED |
| Operating Temp. Range | -14 to 122 deg C |
| IP Rating | IP40 |
| Standards | CE |
| Wetted Materials | Nickel Plated Brass |
| Housing Material | Plastic |
| Series | PSAN |
| Proof Pressure | 29 psi |
| Package Quantity | 1 |
