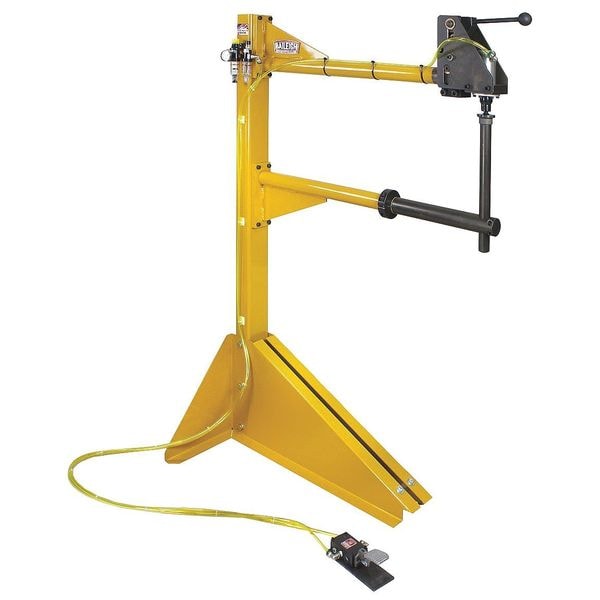

Air Planishing Hammer, 120 psi, 44 in. L
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Planishing Hammer |
| Blows per Minute | 3200 |
| Max. Force | 120 psi |
| Capacity of Mild Steel | 16 ga |
| Throat Depth | 36 in |
| Head Opening | 2 1/2 in |
| Die Size | 2 in Radius |
| Phase | 1 |
| Overall Length | 44 in |
| Frame Tube Size | 2 in |
| Net Weight | 200 lb |
| Includes | (7) Radius Dies, Filter, Foot Pedal, Oiler |
| Max. Workpiece Thickness | 16 ga |
| Overall Height | 60 in |
| Overall Width | 28 in |
| Required Pressure | 80 to 120 psi |
| Air Inlet | Male |
| Features | Adjustable Length for Offset Planishing, Automatic Oiler, Foot Pedal Operation Leaves User's Hands Free, Rebuildable Air Motor |
| Number of Speed Settings | Continuous |
| Application | Shaping and Forming |
| Air Inlet Gender | 1/2 in |
| Air Consumption | 12 cfm |
| Air Inlet Type | 1/2 in NPT Male |
| Sheet Metal Capacity Steel | 16 ga |
| Air Inlet Size | NPT |
| Minimum Blows per Minute | 3,200 bpm |
| Hammer Type | Air-Powered Planishing Hammer |
| Adjustable Depth Stop | No |
| Hammer Die Size | 2 in, 3 in, 6 in, 8 in, 12 in, 24 in |
| Speed Setting | Variable Speed |
| Anvil Die Type | Radius |
| Number of Pieces | 8 |
| Maximum Blows per Minute | 3,200 bpm |
| Hammer Die Type | Flat, Radius |
| Hammer Mode | Non-Rigid |
| Sheet Metal Capacity Aluminum | 14 ga |
| Air Pressure | 80 to 120 psi |
| Power Source | Air Powered |
| Package Quantity | 1 |
