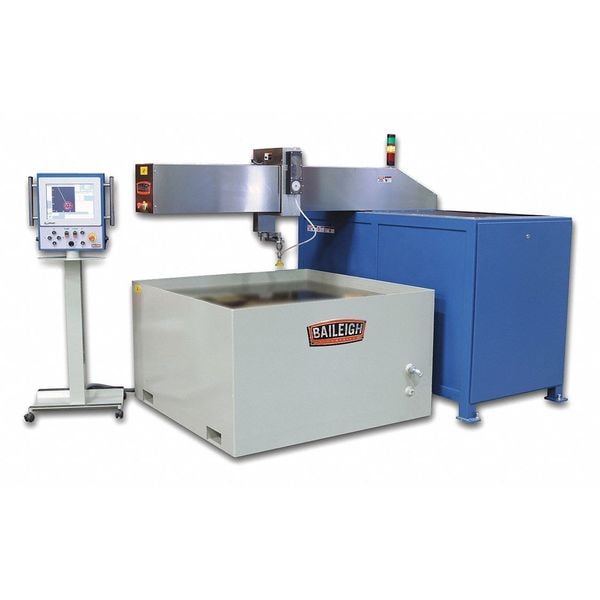

Cantilever Waterjet, 3 Phase, 144" H, 81" W
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Pump Type | Direct Drive |
| Overall Height | 144 in |
| Number of Axis | 3 |
| File Formats | G-Code, DXF Import |
| Includes | 2200 lb Garnet BobCAD CAM |
| Travel Speed | 39 21/64 fpm |
| Table Dimensions | 48 in x 48 in |
| Cutting Accuracy | 0.001 in |
| Voltage | 460 V |
| Control System | ISSAC |
| Max. Cutting Cap. Mild Steel | 3 1/2 in |
| Y Axis Travel | 48-3/4 in |
| X Axis Travel | 50 in |
| Orifice Dia. | 0.014" |
| Overall Depth | 103 in |
| Repeatability | 0.001" |
| Overall Width | 81 in |
| Features | Ability to Cut Just About Any Material with Precision;Cutting Table and Framework is Laser Cut and Interlocked and Welded for Strength and Rigidity to Ensure Accuracy During the Cutting Process |
| Item | Waterjet Cutting Machine |
| Operating Pressure | 55,000 psi |
| Z Axis Travel | 5" |
| Max. Cutting Cap. Stainless Steel | 2 1/4 in |
| Phase | Three |
| Supported File Formats | DXF |
| Filter Type | 2 Stage/2 Filter: 10 and 1 microns |
| Design | Cantilever |
| Nozzle Orifice Size | 0.014 in |
| Repeatability Accuracy | 0.001 in |
| Hopper Capacity | 250 lb |
| Software | BobCAD Cam |
| Number of Filters | 2 |
| Max. Flow Rate | 7.92 gpm |
| CNC Operating System | Windows Based |
| For Workpiece Material | Aluminum, Ceramic, Copper, Foam, Glass, Granite, Mild Steel, Plastic, Stainless Steel, Titanium |
| Maximum Cutting Capacity Mild Steel | 3 1/2 in |
| Table Length | 48 in |
| Table Width | 48 in |
| Maximum Input Flow Rate | 7.92 gpm |
| Maximum X-Axis Travel | 48 in |
| Maximum Y-Axis Travel | 48 in |
| Maximum Z-Axis Travel | 6 3/4 in |
| Manufacturer Warranty | 1 yr Parts |
| Wattage | 30 W |
| Material Compatibility | Aluminum, Ceramic, Copper, Glass, Granite, Steel, Plastic, Stainless Steel, Titanium |
| Maximum Output Pressure | 56,000 psi |
| Maximum Input Pressure | 30 psi |
| Maximum Cutting Capacity Stainless Steel | 2 1/4 in |
| Current | 60 A |
| Maximum Working Flow Rate | 7.92 gpm |
| Image Formats | DXF |
| Package Quantity | 1 |
