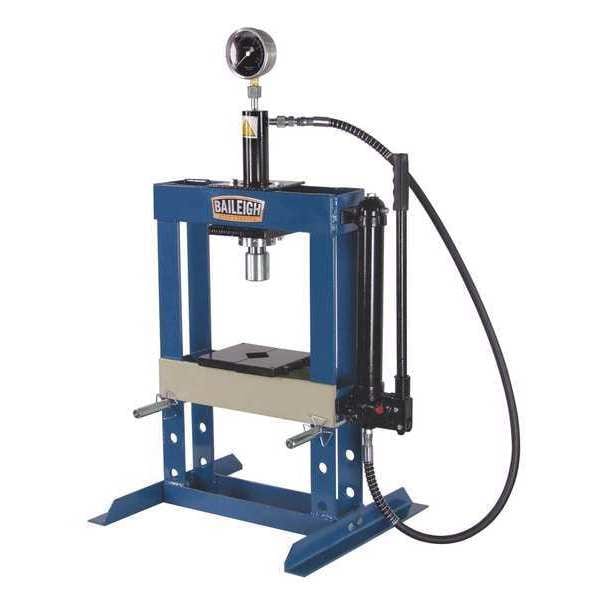

Hydraulic Press, 10 t, Manual Pump, 36 In
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 10 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 7 in |
| Pump Type | Manual |
| Base Length | 23-3/4 in |
| Base Width | 19-3/4 in |
| Overall Height | 36 in |
| Includes | V-Block |
| Item | Hydraulic Press |
| Total Height | 12 in |
| Total Width | 48 in |
| Cylinder | Fixed, Movable |
| Strokes to Extend Piston 1 In | 16 |
| Application | Pressing Bearings |
| Pump | Yes |
| Working Width | 13-1/2 in |
| Ram Travel | 10 in |
| Features | Movable (Left-Right) Cylinder;Removable Ram Cap;Welded Construction |
| Voltage | Not Applicable |
| Overall Width | 48 in |
| Capacity | 10 ton |
| Pressure | 10 tons |
| Stroke | 16 in |
| Ram Size | 2 in |
| Material - Machining | Steel |
| Distance Between Uprights | 13-1/2 in |
| Min. Ram-to-Table Distance | 4.33 in |
| Max. Ram-to-Table Distance | 14.33 in |
| Operating Pressure | 10 Tonf |
| Phase | Not Applicable |
| Manufacturer Warranty | Limited |
| Base Depth | 23-3/4 in |
| Ram-to-Table Distance - Minimum | 4-3/8 in |
| Current | Not Applicable |
| Press Bed Depth | 7 in |
| Frame Material | Steel |
| Motor Speed - Maximum | Not Applicable |
| Ram-to-Table Distance - Maximum | 14-3/8 in |
| Press Bed Width | 13-1/2 in |
| Pump Model Number | Yes |
| Horsepower | Not Applicable |
| Operation | Manual |
| Package Quantity | 1 |
