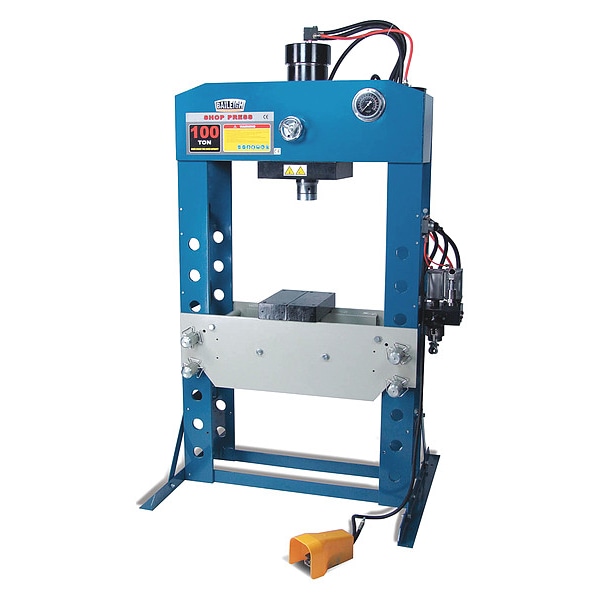

Hydraulic Press, 100 t, Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 100 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 11-3/4 in |
| Pump Type | Air |
| Base Length | 47 in |
| Base Width | 39 in |
| Overall Height | 50-5/8 in |
| Pump | Yes |
| Working Width | 31 in |
| Working Height | 3-5/8 to 36-3/4" |
| Cylinder | Fixed, Movable |
| Item | Hydraulic Press |
| Total Width | 45 in |
| Application | Pressing Bearings |
| Total Height | 24 in |
| Ram Travel | 10 in |
| Includes | V-Block |
| Features | Hand-Operated Lever;Movable (Left-Right) Cylinder;Welded Plate Frame |
| Overall Width | 45 in |
| Overall Length | 81 in |
| Capacity | 100 ton |
| Voltage | Not Applicable |
| Min. Ram-to-Table Distance | 4.45 in |
| Distance Between Uprights | 31 in |
| Max. Ram-to-Table Distance | 32.01 in |
| Stroke | 11.8 in |
| Ram Size | 3-1/2 in |
| Material - Machining | Steel |
| Pressure | 100 tons/123 psi |
| Phase | Not Applicable |
| Overall Depth | 81 in |
| Operating Pressure | 125 psi |
| Motor Speed - Maximum | Not Applicable |
| Ram-to-Table Distance - Minimum | 4-1/2 in |
| Base Depth | 47 in |
| Current | Not Applicable |
| Press Bed Width | 31 in |
| Press Bed Depth | 11-3/4 in |
| Ram-to-Table Distance - Maximum | 32 in |
| Pump Model Number | Yes |
| Operation | Air |
| Frame Material | Steel |
| Horsepower | Not Applicable |
| Manufacturer Warranty | 1 yr |
| Package Quantity | 1 |
