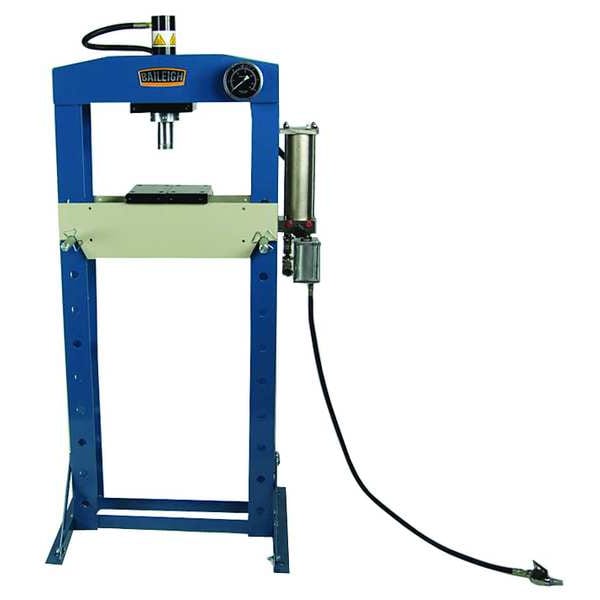

Hydraulic Press, 20 t, Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 20 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 7-1/2 in |
| Pump Type | Air |
| Base Length | 44 in |
| Base Width | 24 in |
| Overall Height | 68 in |
| Cylinder | Movable |
| Features | Automatic Cylinder Return;Movable (Left-Right) Cylinder;Welded Construction |
| Item | Hydraulic Press |
| Working Height | 2 to 41" |
| Total Height | 24 in |
| Ram Travel | 10 in |
| Total Width | 44 in |
| Bed Height | 2 to 41" |
| Pump | Yes |
| Working Width | 19-1/4 in |
| Includes | Gauge, Pressure Regulator |
| Application | Pressing Bearings |
| Capacity | 20 ton |
| Voltage | Not Applicable |
| Overall Width | 44 in |
| Ram Size | 2 in |
| Distance Between Uprights | 19-1/4 in |
| Stroke | 7-1/2 in |
| Material - Machining | Steel |
| Min. Ram-to-Table Distance | 1.38 in |
| Adjustable Bed | Adjustable |
| Max. Ram-to-Table Distance | 35.91 in |
| Pressure | 20 tons/123 psi |
| Phase | Not Applicable |
| Operating Pressure | 123 psi |
| Base Depth | 44 in |
| Press Bed Width | 19-1/4 in |
| Press Bed Depth | 7-1/2 in |
| Ram-to-Table Distance - Minimum | 1-3/8 in |
| Current | Not Applicable |
| Horsepower | Not Applicable |
| Pump Model Number | Yes |
| Frame Material | Steel |
| Ram-to-Table Distance - Maximum | 35-7/8 in |
| Motor Speed - Maximum | Not Applicable |
| Manufacturer Warranty | Limited |
| Operation | Air |
| Package Quantity | 1 |
