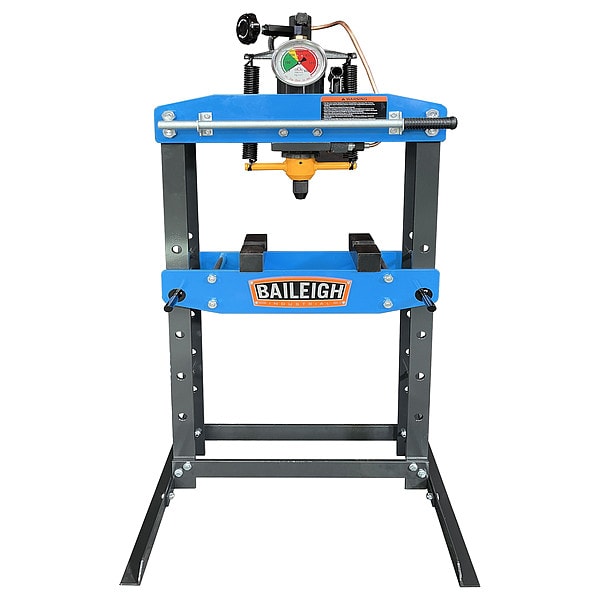

Hydraulic Press, 5 Ton, Manual, Black/Blue
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 5 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 3 in |
| Pump Type | Hydraulic |
| Base Length | 23-1/2 in |
| Base Width | 26 in |
| Overall Height | 51-1/2 in |
| Application | Pressing Bearings |
| Overall Width | 26 in |
| Pump | Hydraulic |
| Cylinder Type | Manual Hydraulic |
| Item | Hydraulic Press |
| Voltage | Not Applicable |
| Includes | Gauge, Pressure Regulator |
| Phase | Not Applicable |
| Overall Depth | 23-1/2 in |
| Features | Adjustable table for variety of Applications, Standard V-Block Set, 1-Year Parts Warranty and Lifetime Technical Support by Phone, Industrial-Grade Hydraulic Components, Rigid, Electro-Welded Steel Construction |
| Material - Machining | Steel |
| Ram Size | 1-3/4 in |
| Min. Ram-to-Table Distance | 1.38 in |
| Standards | OSHA, ANSI |
| Stroke | 3 in |
| Max. Ram-to-Table Distance | 35.91 in |
| Table Length | 19 in |
| Overall Length | 23-1/2 in |
| Color | Blue, Black |
| Base Depth | 23-1/2 in |
| Horsepower | Not Applicable |
| Ram-to-Table Distance - Minimum | 1-3/8 in |
| Pump Model Number | Hydraulic |
| Capacity | 5 ton |
| Operation | Manual |
| Frame Material | Steel |
| Press Bed Depth | 5-7/8 in |
| Ram-to-Table Distance - Maximum | 35-7/8 in |
| Motor Speed - Maximum | Not Applicable |
| Press Bed Width | 19 in |
| Current | Not Applicable |
| Manufacturer Warranty | 1 yr |
| Screw Stroke | 3 in |
| Package Quantity | 1 |
