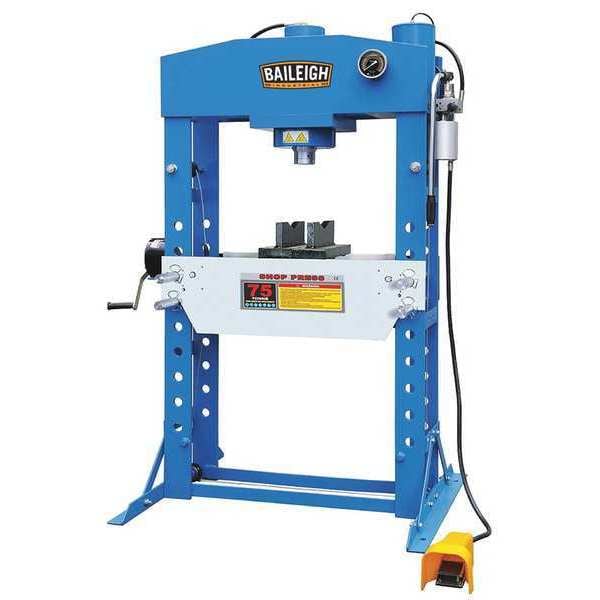

Hydraulic Press, 75 t, Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 75 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 9-3/4 in |
| Pump Type | Air |
| Base Length | 44 in |
| Base Width | 24 in |
| Overall Height | 83 in |
| Application | Pressing Bearings |
| Item | Hydraulic Press |
| Total Width | 43 in |
| Bed Height | 2-1/2 to 34-1/2" |
| Working Width | 31-1/2 in |
| Ram Travel | 16 in |
| Total Height | 20 in |
| Working Height | 2-1/2 to 34-1/2" |
| Includes | V-Block |
| Pump | Yes |
| Cylinder | Movable |
| Features | Automatic Cylinder Return;Foot Pedal Control;Movable (Left-Right) Cylinder;Welded Construction |
| Capacity | 75 ton |
| Overall Width | 43 in |
| Voltage | Not Applicable |
| Material - Machining | Steel |
| Distance Between Uprights | 31-1/2 in |
| Max. Ram-to-Table Distance | 34.8 in |
| Pressure | 75 tons/123 psi |
| Ram Size | 3 in |
| Min. Ram-to-Table Distance | 6.69 in |
| Stroke | 9.8 in |
| Phase | Not Applicable |
| Operating Pressure | 123 psi |
| Required Air Pressure - Minimum | 90 psi |
| Operation | Air |
| Frame Material | Steel |
| Current | Not Applicable |
| Pump Model Number | Yes |
| Base Depth | 44 in |
| Horsepower | Not Applicable |
| Press Bed Depth | 9-3/4 in |
| Press Bed Width | 31-1/2 in |
| Required Air Pressure - Maximum | 115 psi |
| Motor Speed - Maximum | Not Applicable |
| Manufacturer Warranty | 1 yr |
| Ram-to-Table Distance - Maximum | 34-3/4 in |
| Ram-to-Table Distance - Minimum | 6-3/4 in |
| Package Quantity | 1 |
