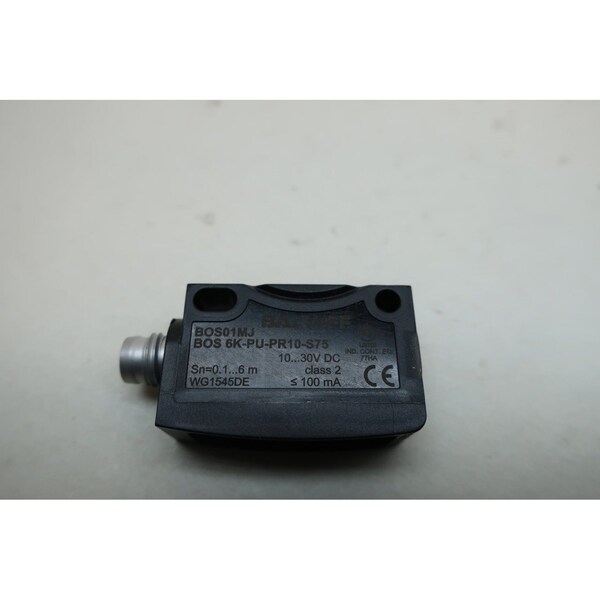

Sensor fotoeléctrico retroreflectante de 10-30V-DC.
| Beam characteristic | Divergent |
|---|---|
| Light type | red light |
| Principle of optical operation | Retroreflective sensor |
| Connection | Connector, M8x1-Male, 4-pin |
| Input function | Key disable on/off, Same function as button |
| Range | 0-6 m |
| Approval/Conformity | cULus, CE, EAC, WEEE |
| Principle of operation | Photoelectric sensor |
| Interface | PNP NO/NC |
| Series | 6K |
| Housing material | ABS |
| Operating voltage Ub | 10-30 VDC |
| Dimension | 12 x 41.5 x 21.6 mm |
| Light spot size | 600 x 600 mm at 7 m |
| Material sensing surface | PMMA |
| Voltage (DC) | 10 V-DC |
| Package Quantity | 1 |
